- Stare Perfecta de Functionare,sunet f f bun,totul original la interior,fara reparatii - ( pentru mai multe detali va rog la Telefon )

General

Manufacturer: Technics
Model: SU-V55A
Type: Class AA integrated amplifier
Years of manufacture: 1987 - 1989
Made in: Japan
Color: Black
Remote control: no
Power consumption: 550 W
Dimensions: 430 x 126 x 340 mm (WxHxD)
Weight: 9.1 kg
Original price approx.: 890 €

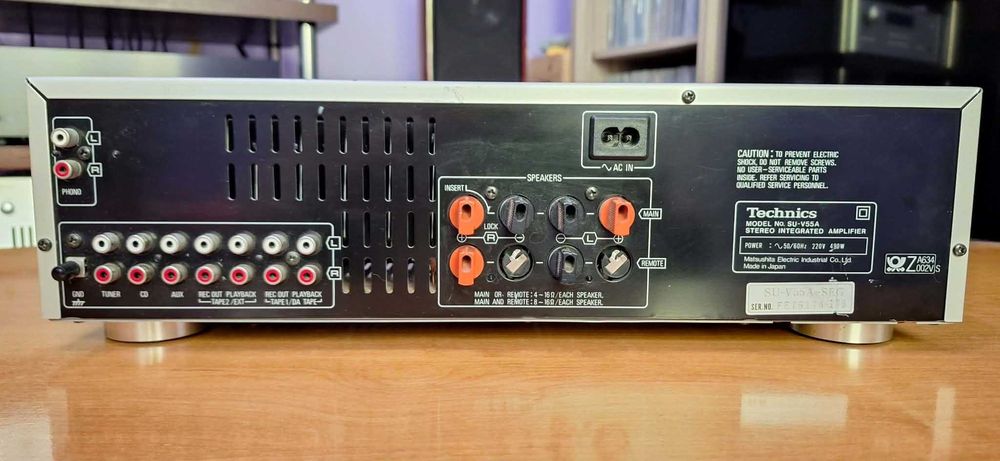

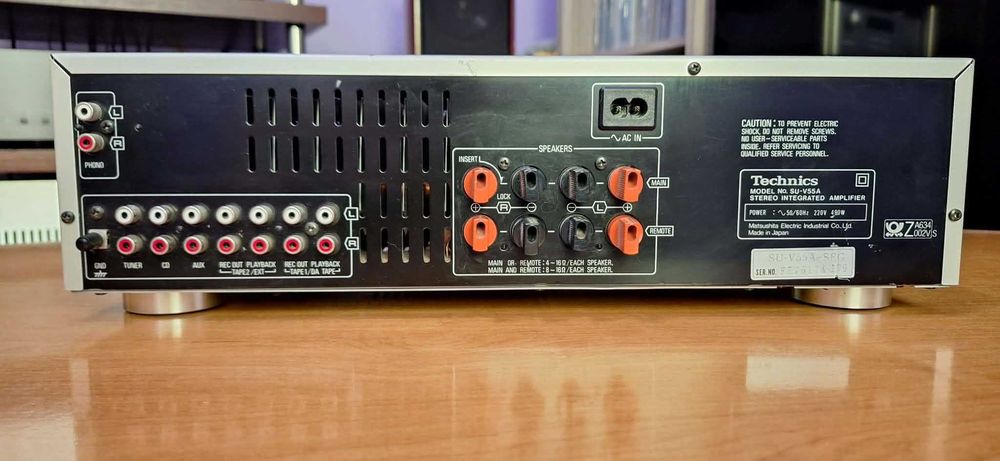

Connections

Number of inputs:
Phono (MM): 2.5 mV / 47 kOhm.
Phono (MC): 170 µV / 47 Ohm
Tuner, CD, Aux, Tape 1/DA Tape, Tape 2/EXT: 150 mV / 22 kOhm
Number of outputs:
2x Tape

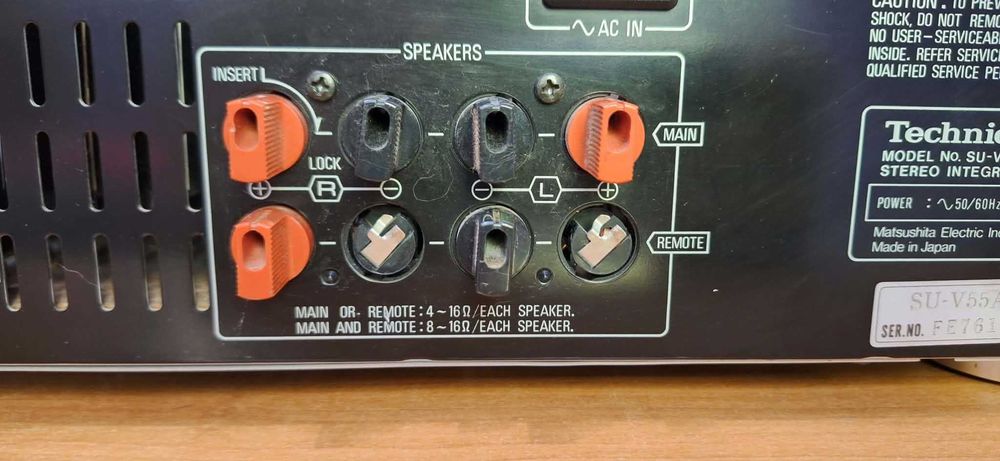

2 pairs of speakers
Headphones (6,5mm jack)

Specifications

continuous sound output power 20 Hz - 20 kHz
8 Ohm: 2 x 65 W

Continuous sound output power 1 kHz
4 Ohm: 2 x 105 W

Total harmonic distortion:
Rated power at 20 Hz - 20 kHz: 0.002 % (8 ohms).
Rated power at 1 kHz: 0.005 % (4 Ohm)
Rated power at 1 kHz: 0.0009 % (8 ohms)
Attenuation factor: 30 (4 ohms), 60 (8 ohms)
Frequency response:
Phono: RIAA ±0.8 dB: 30 Hz - 15 kHz
Tuner, CD, Aux, Tape 1/DA Tape, Tape 2/EXT: 20 - 20,000 Hz (+0/-0.2 dB)
External voltage spacing:
Phono MM: 78 dB
Phono MC: 72 dB

Tuner/Aux: 94 dB
Tone control:
Bass: ± 10 dB at 50 Hz
Treble: ± 10 dB at 20 kHz

Loudness: yes
Low Filter (Subsonic):
Mute:
Direct/Line-Straight: CD Direct
