- Stare Perfecta de Functionare,sunet f f bun,totul original la interior,fara reparatii -

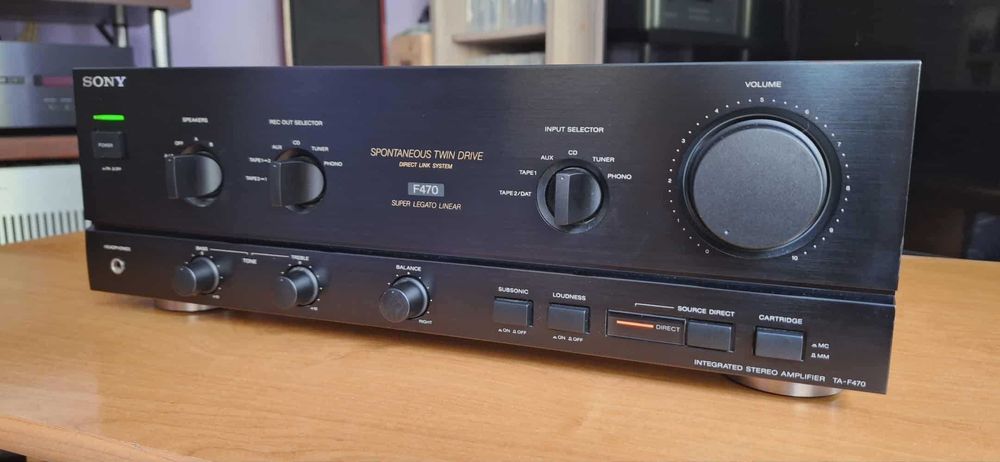

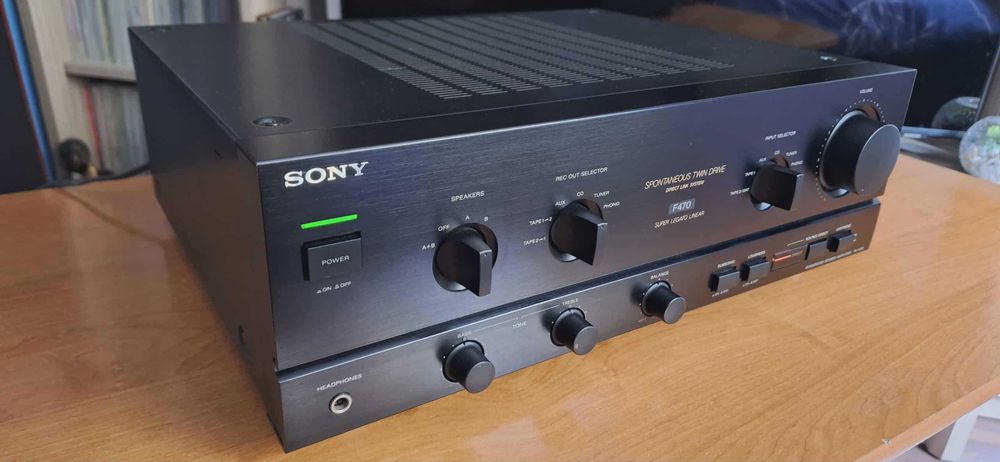

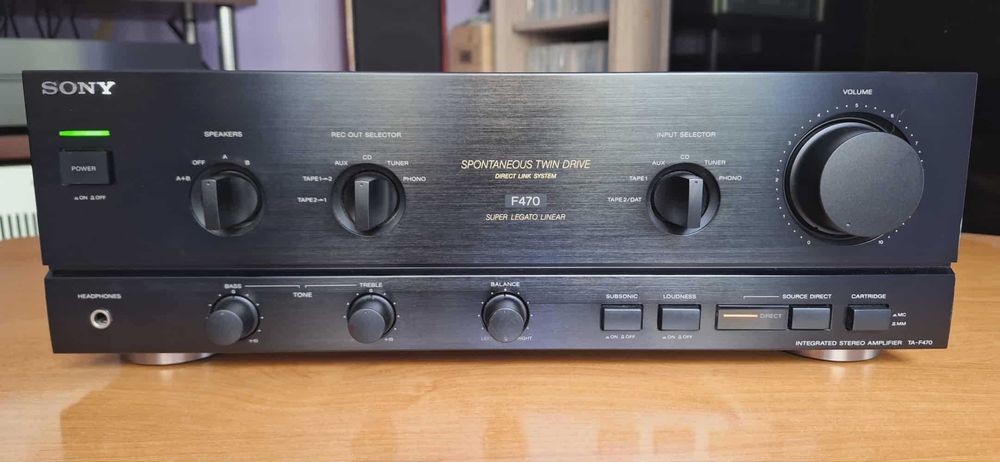

Sony TA-F 470

General

Manufacturer: Sony
Model: TA-F 470
Type: Integrated amplifier
Years of manufacture: 1990 - 1992
Made in: Japan
Color: Black
Remote control: No
Power consumption: 210 W
Dimensions: 430 x 148 x 372 mm (WxHxD)
Weight: 9.4 kg
Original price approx.: 500 DM

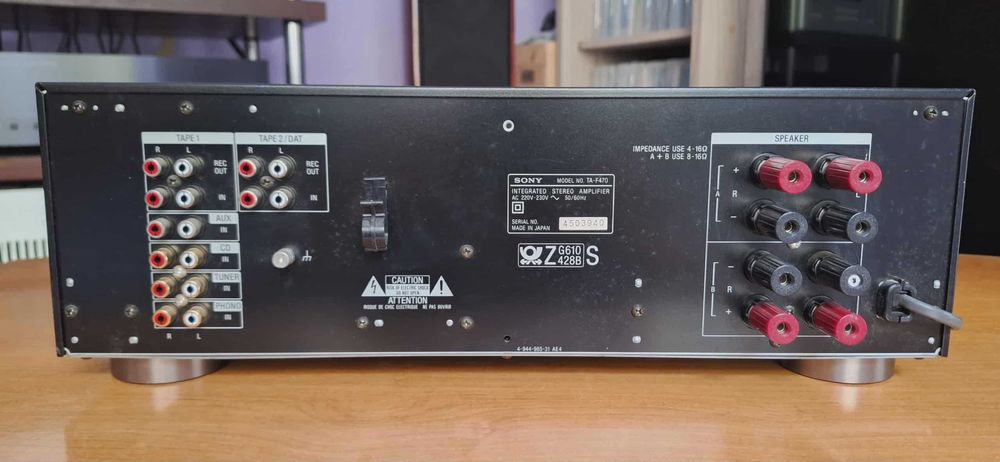

Connections

Inputs:
Phono(MM/MC), Tuner, CD, Video/Aux, Tape1, Tape2/Dat.
Outputs:
Headphone jack(6.3mm), Tape1, Tape2/Dat.
2 pairs of speakers

Technical Data

Sine continuous sound power (both channels driven simultaneously):
90W + 90W 8 ohms, 80W + 80W (20 Hz-20kHz, 0.008% harmonic distortion, 8 ohms).
110W + 110W 4 Ohm, 90W + 90W (20 Hz-20kHz, 0.02% distortion, 4 Ohm)

Damping Factor: 70 (8 Ohm/1kHz)
Frequency Response:
Phono RIAA equalization curve: ± 0.5 dB.
High level TUNER, CD, VIDEO/AUX, Tape1, TAPE2/DAT: 7 Hz - 100 kHz (±3db)
Signal-to-noise ratio: 84 dB

Tone control: yes, can be switched off
Bass: at 100 Hz (±10db), (crossover frequencies 500Hz, +6dB -7dB)
Treble: at 15 kHz (±10db),(crossover frequencies 3kHz +7dB -8dB), (crossover frequencies 6kHz, +4dB -5dB)
Subsonic: Yes, 6 dB / Octave below 15 Hz
Loudness: no
High Filter: no
Mute: yes, -20 dB
Direct/Line-Straight: yes
