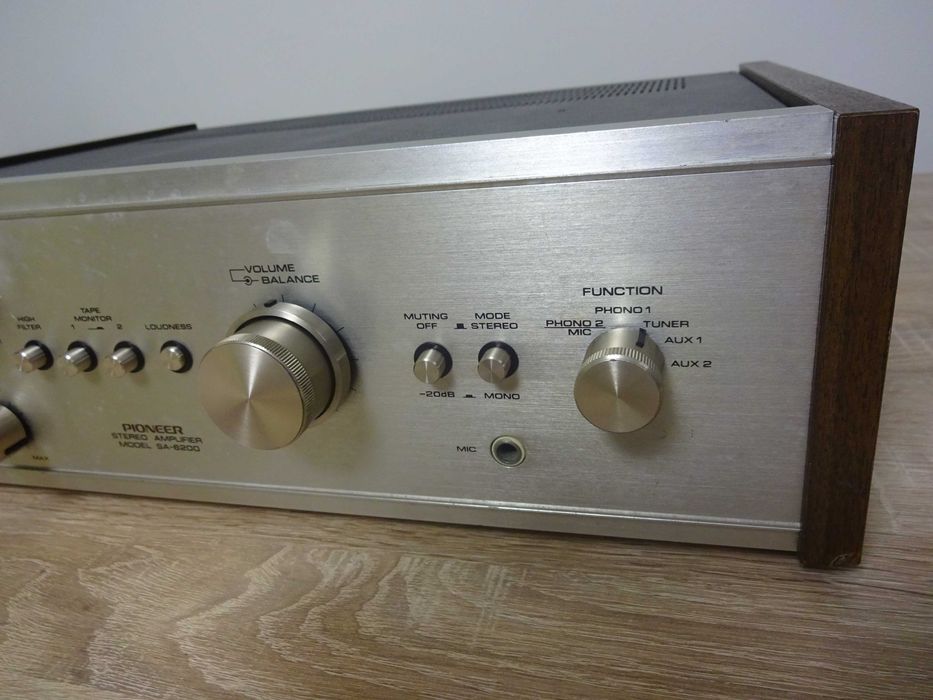

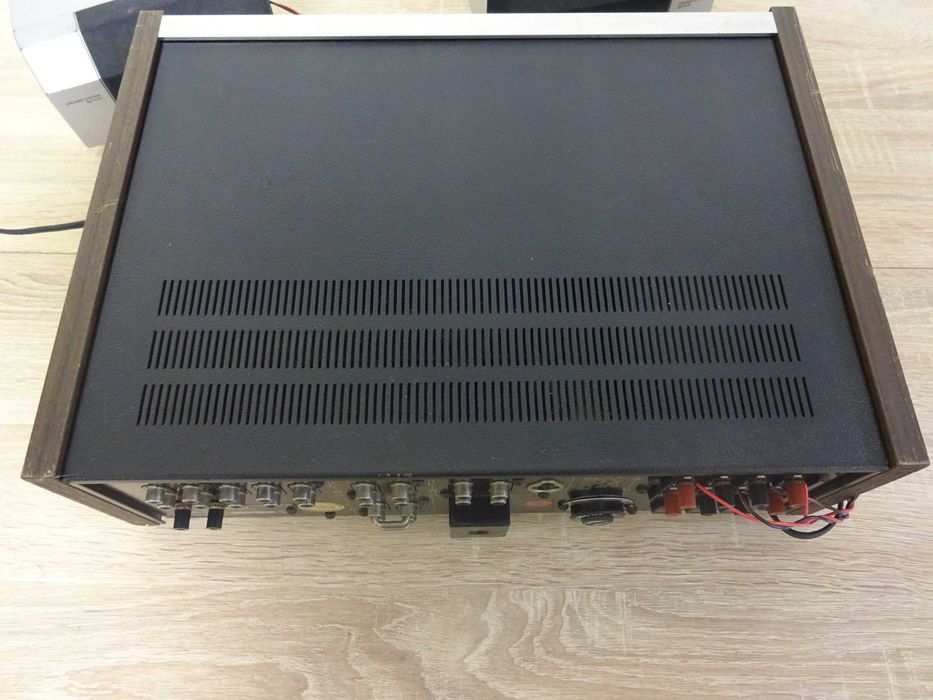

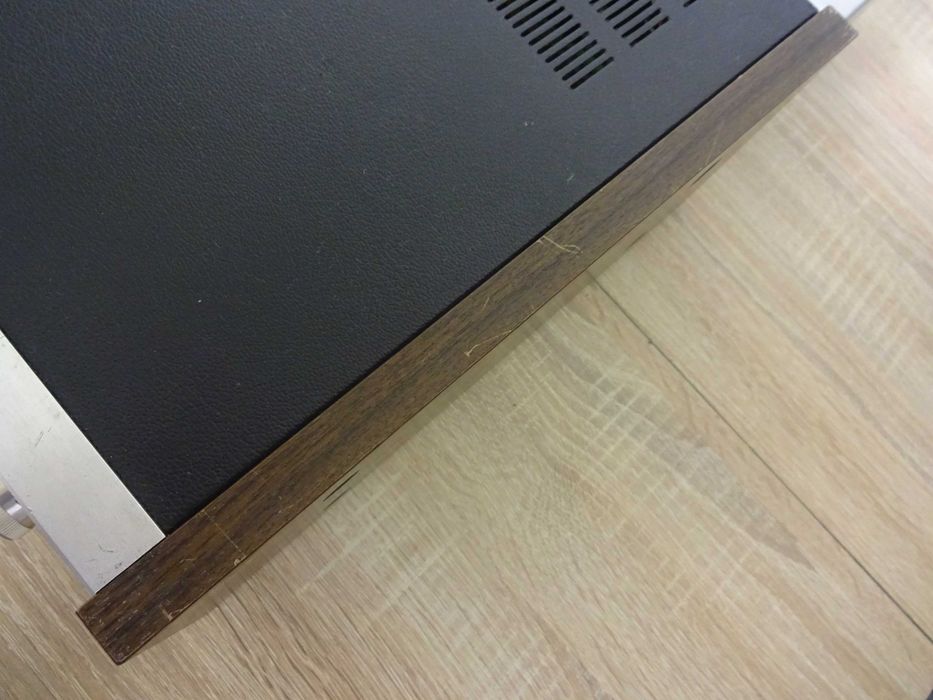

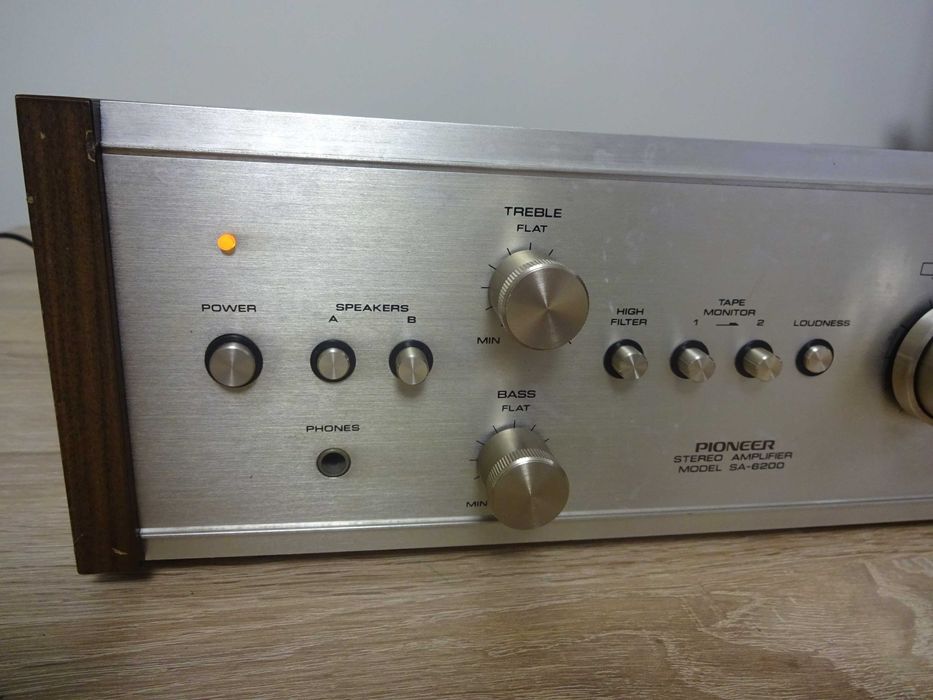

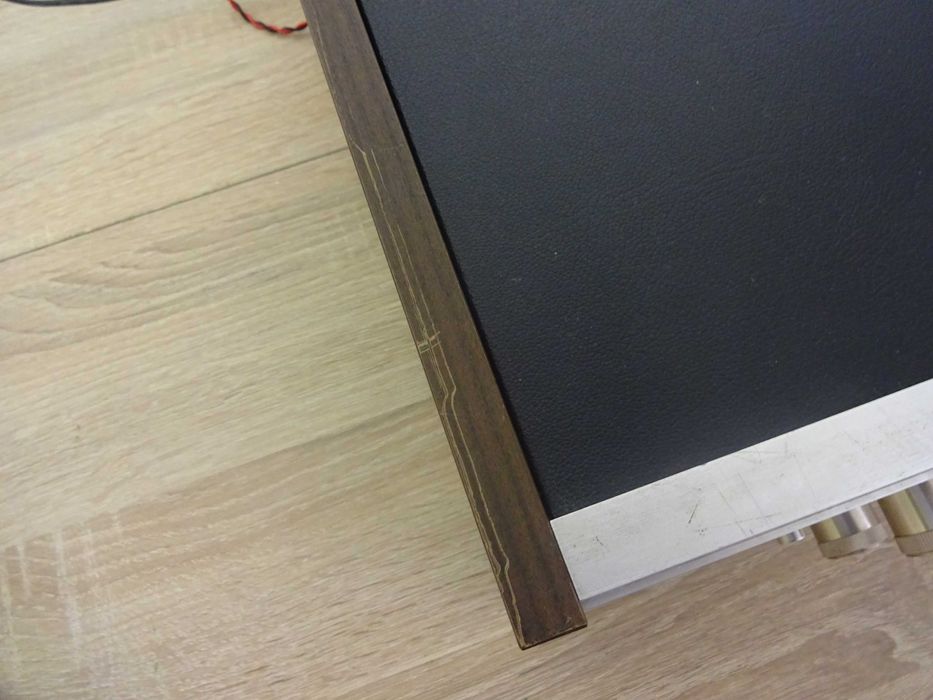

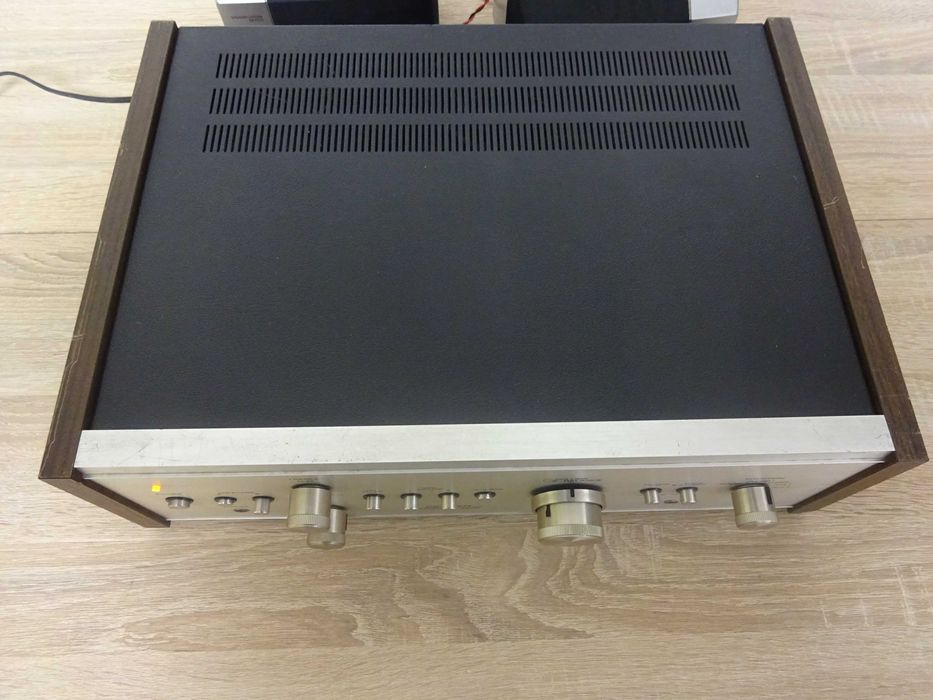

Vand amplificator Pioneer, model SA-6200, Made in Japan stare perfecta de functionare, un sunet extrem de placut si bogat, prezinta unele imperfectiuni estetice, vizibile in poze!

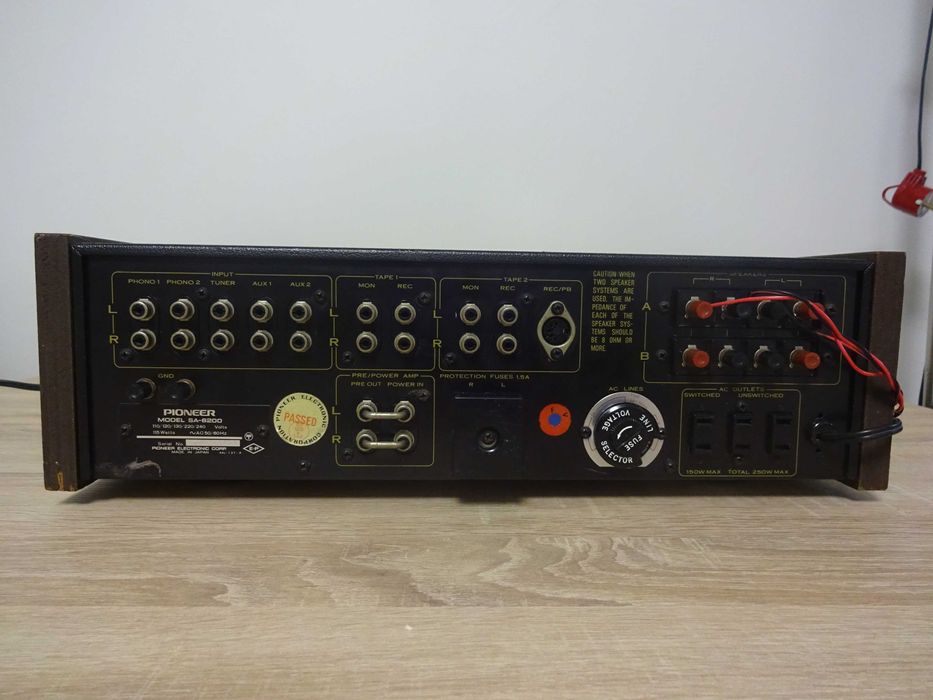

Permite intercalarea unui egalizator, avand mufe de separatie intre preamplificator si amplificatorul final, are intrare de microfon separata, se poate utiliza atat ca preamplificator cat si ca amplificator separat!

Pretul este fix, nu sunt interesat de schimburi. La ridicare personala se ofera proba, sau se poate trimite prin curier rapid, asigur ambalare profesionala, exclus Posta Romana!

Aparatul prezinta urmatoarele caracteristici tehnice:

Continuous Power Output
Both channels driven 20Hz-20kHz
Harmonic Distortion
Intermodulation Distortion 15W+15W (8Ω or 4Ω)
0.5%
0.5%
Power Bandwidth (IHF) 10Hz-70kHz (THD 0.5%)
Frequency Response 15Hz-80kHz +0dB,-1dB
Input Sensitivity/Impedance
POWER AMP IN 500mV/50kΩ
Output, Speaker
Headphones A, B, A+B (4-16Ω)
4-16Ω
Damping Factor (1kHz, 8Ω) > 30
Hum & Noise
(IHF, Short-circuited, A Network) > 90dB
Residual Hum & Noise
(8Ω, Pre & Power-amplifier) 1mV (0.13µW)
Preamplifier Section
Input Sensitivity/Impedance
PHONO1
PHONO2
MIC
TUNER
AUX1
AUX2
TAPE MONITOR1 2
TAPE MONITOR2 (DIN connector)
2.5mV/50kΩ
2.5mV/50kΩ
7.5mV/50kΩ
150mV/100kΩ
150mV/100kΩ
150mV/100kΩ
150mV/100kΩ
150mV/100kΩ
Output Level/Impedance
TAPE REC1, 2
TAPE REC2 (DIN connector)
PRE AMP OUT
150mV/1.4kΩ
30mV/80kΩ
500mV/4.7kΩ
Harmonic Distortion (20Hz-20kHz) 0.2%
Frequency Response
PHONO (RIAA equalization)
TUNER, AUX, TAPE MON
30Hz-15kHz ±0.5dB
15Hz-30kHz ±1dB
Hum & Noise
(IHF, Short-circuited, A Network)
PHONO
MIC
TUNER, AUX, TAPE MON

> 75dB
> 80dB
> 90dB
Semiconductors: 26 Transistors, 11 Diodes

Versions/Power requirements
FV / 110/120/130/220/240V AC 50/60Hz with voltage selector

Power consumption: 115 watts

Dimensions (WHD 415 x 138 x 328 mm / 16.3 x 5.4 x 12.9 inch
Net weight (2.2 lb = 1 kg)
8.1 kg / 17 lb 13.5 oz (17.841 lb)
