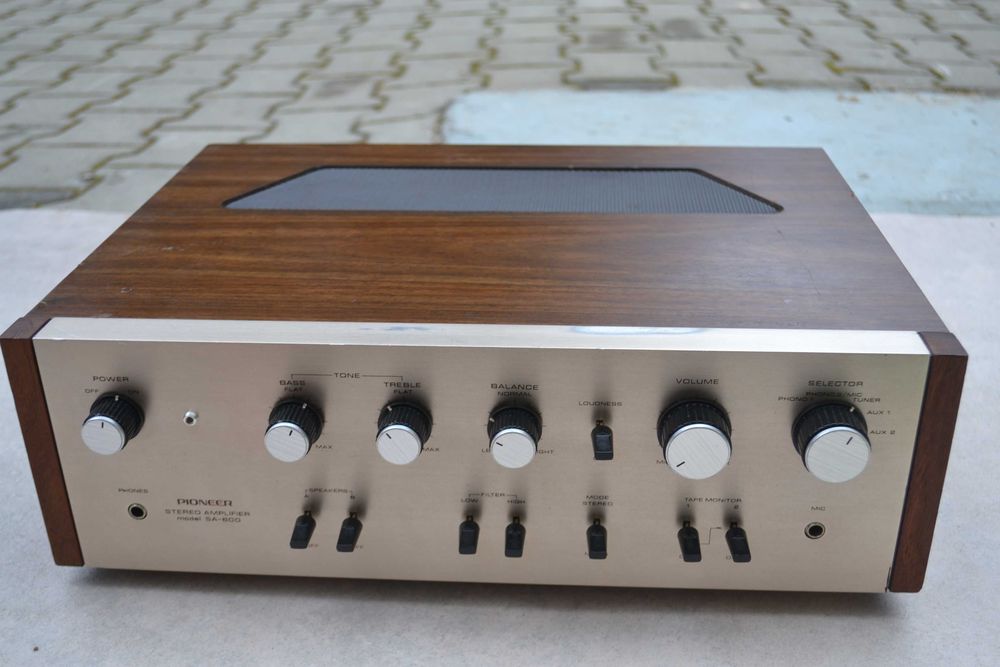

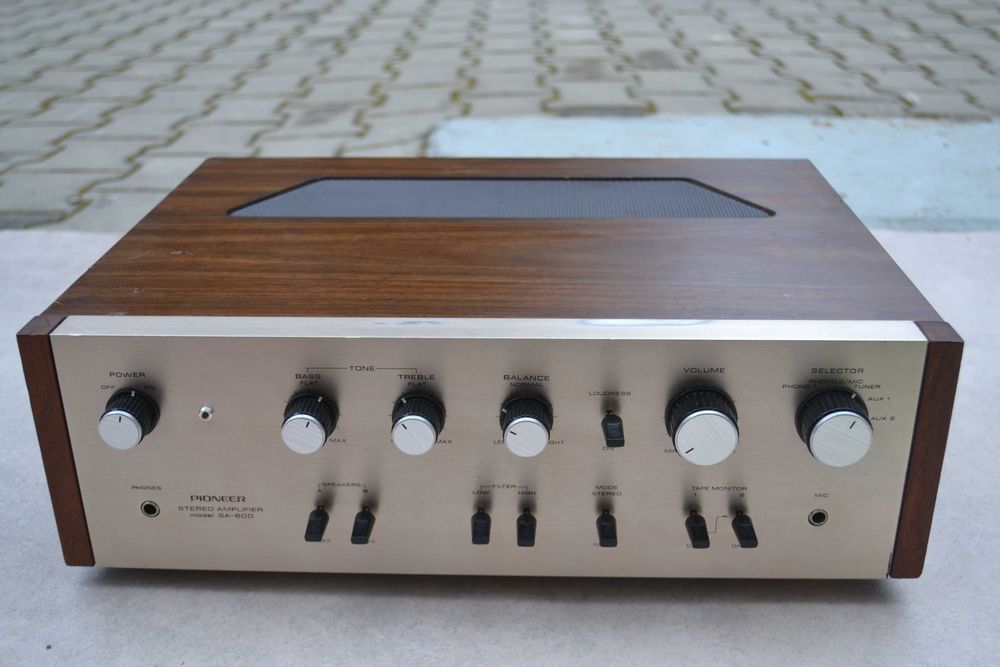

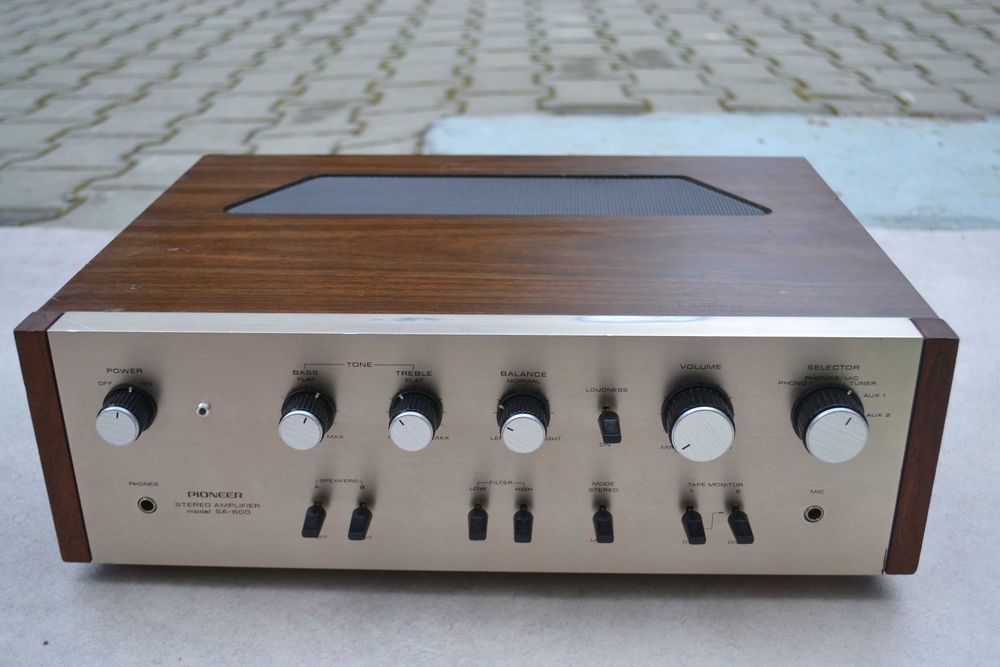

Amplificator Pioneer SA 600: 8 intrari, 4 iesiri, 4-16 ohmi, made in Japan, 145W consum, carcasa lemn, vintage, low/high filter, mono/stereo, intrare microfon, loudness, iesire casti, poze reale.

General

Manufacturer: Pioneer
Model: SA-600
Type: Integrated amplifier
Years of manufacture: 1971 - 1972
Made in: Japan
Color: Silver
Power consumption: 55 W, 145 W (max.)
Dimensions: 430 x 145 x 337 mm (WxHxD)
Weight: 8.9 kg
Original price approx.: 180 US-$, 811 DM

Connections

Number of inputs:
2x Phono MM: 2.3 mV / 50 kOhm (MM).
2x Aux, 1x Tuner: 200 mV / 95 kOhm
2x Tape (1x Cinch, 1x Cinch/DIN): 200 mV / 95 kOhm
Main In
Microphone: 3,3 mV / 50 kOhm

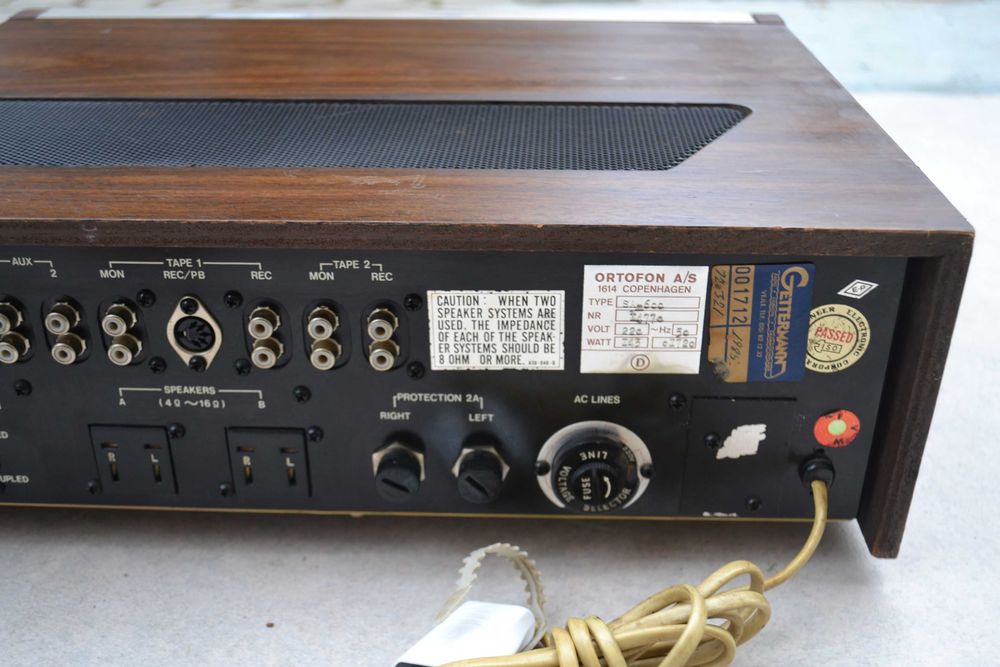

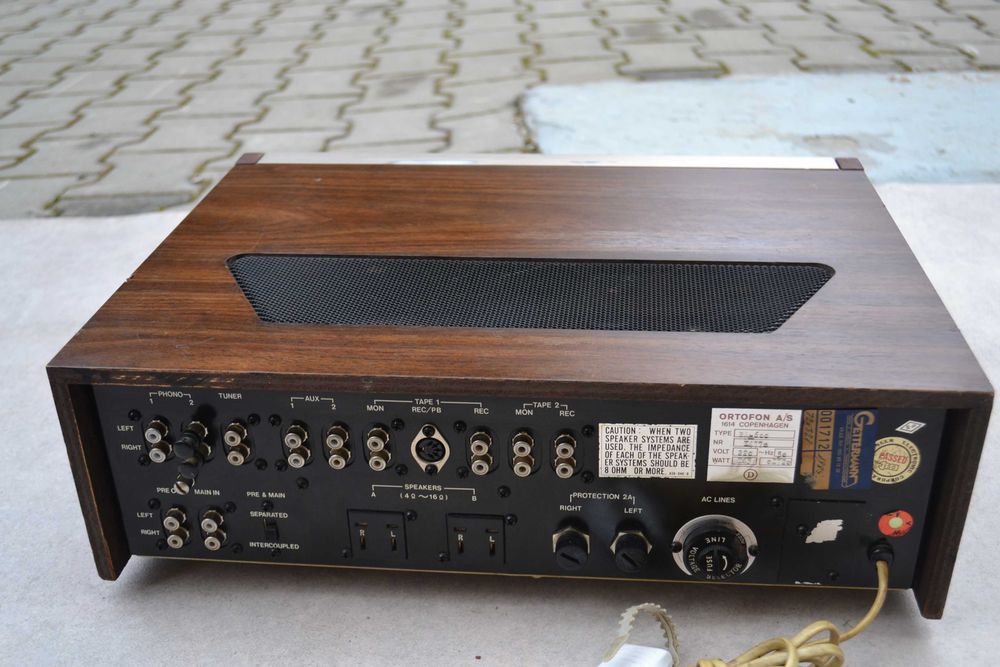

Number of outputs:
2x Tape (1x Cinch, 1x Cinch/DIN): 100 mV (Cinch) / 30 mV (DIN)
Pre Out
Headphones (6.3 mm jack, front)
2 pairs of loudspeakers

Technical Data

Continuous power (at distortion factor)
8 Ohm: 2x 19 W
4 Ohm: 2x 31 W

Dynamic power
8 Ohm: 70 W
4 Ohm: 100 W
Total harmonic distortion: 0,5%
Attenuation factor:
Frequency response:
15 - 70,000 Hz (±1 dB)
Power bandwidth: 10 - 50,000 Hz
Signal-to-noise ratio:
Stereo channel separation:
Tone control:
Bass: ±10 dB at 100 Hz
Treble: -12/+9.5 dB at 10 kHz
Loudness: +11.5/+6.5 dB (100 Hz/10 kHz)
High Filter: 12 kHz selectable (12 dB/oct)
Low Filter (Subsonic): 60 Hz selectable (12 dB/oct)
