Putere mare, 80w/4 ohmi sau 60w/ 8 ohmi cu distorsiuni mici, 0,009% la un răspuns în frecvență de 5 Hz - 100000 Hz !!!

Se aude doar pe TAPE 2 , selectorul de surse are o problema !

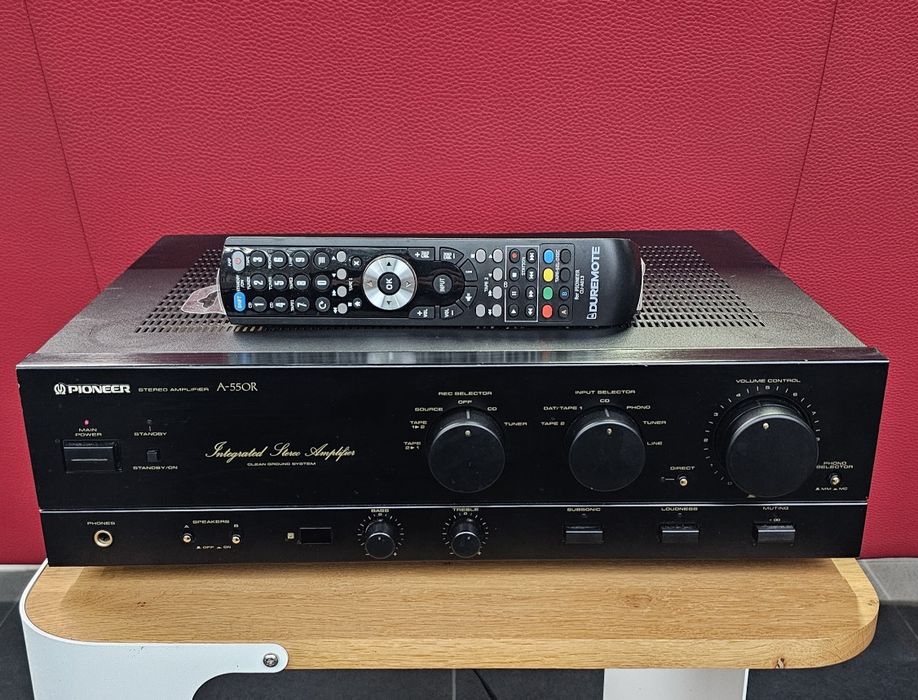

Pioneer A-550 R
Year built: 1991
Made in: Japan
Color: black/silver
Type: Analog
Remote control: yes, CU-A001

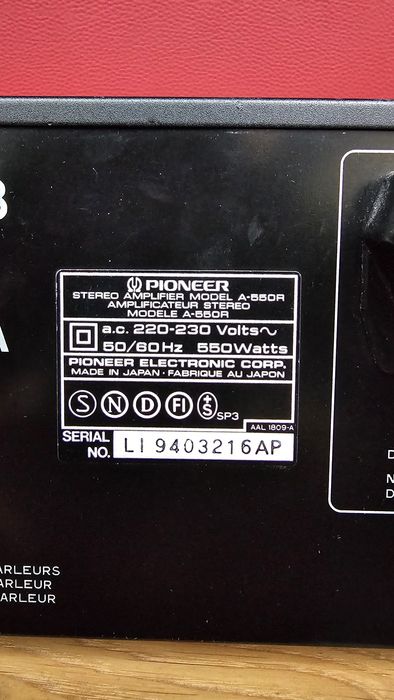

Power consumption: 550 watts
Dimensions: 420 x 348 x 126 mm
Weight: 9,1 Kg
Original price approx.: 600 DM

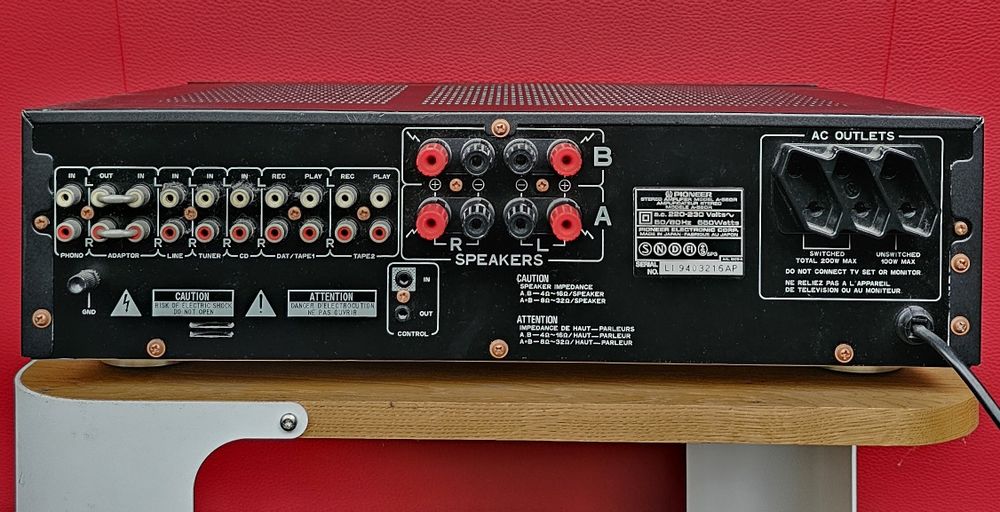

Connections

Number of inputs:
Phono
Tuner, CD, Line
Tape 1, Tape 2 Adaptor (Equalizer)

Number of outputs:
Tape 1
Tape 2

Headphones

Technical Data

Continuous power (at distortion)
8 Ohm: 2 x 60 W
4 Ohm: 2 x 80 W

Dynamic power
8 Ohm:
4 Ohm: 150 W
Total harmonic distortion: 0,009 %
Attenuation factor:
Frequency response: 5 - 100,000 Hz (+0/-3 dB).
Signal-to-noise ratio: 108 dB
Stereo channel separation:
Tone control:
Bass: yes
Treble: yes

Loudness: yes
Low Filter (Subsonic): yes
Mute: yes
Direct/Line-Straight: yes

Special Features

Connections for two pairs of speakers, separately switchable
Input selector switch for Phono, Tuner, CD, Tape1, Tape2, Line
Rec Selector for Tuner, CD, OFF, Source, Tape 1->2 and Tape 2->1
Phonoselect switch for MM or MC
Switches for Subsonic, Loudness, Direct and Muting, with LED indicator
Separable pre and final stage (e.g. for looping in an equalizer, decoder etc.)
Headphone jack First Pioneer amp with remote control, see also the slightly smaller A 450 R

Identical in construction with A 501 R
