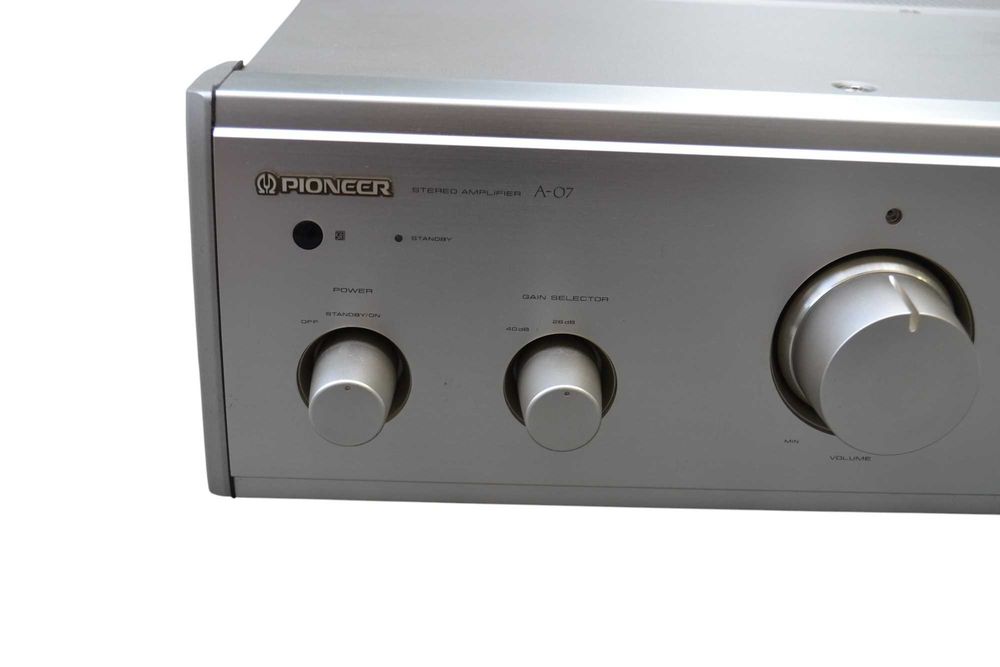

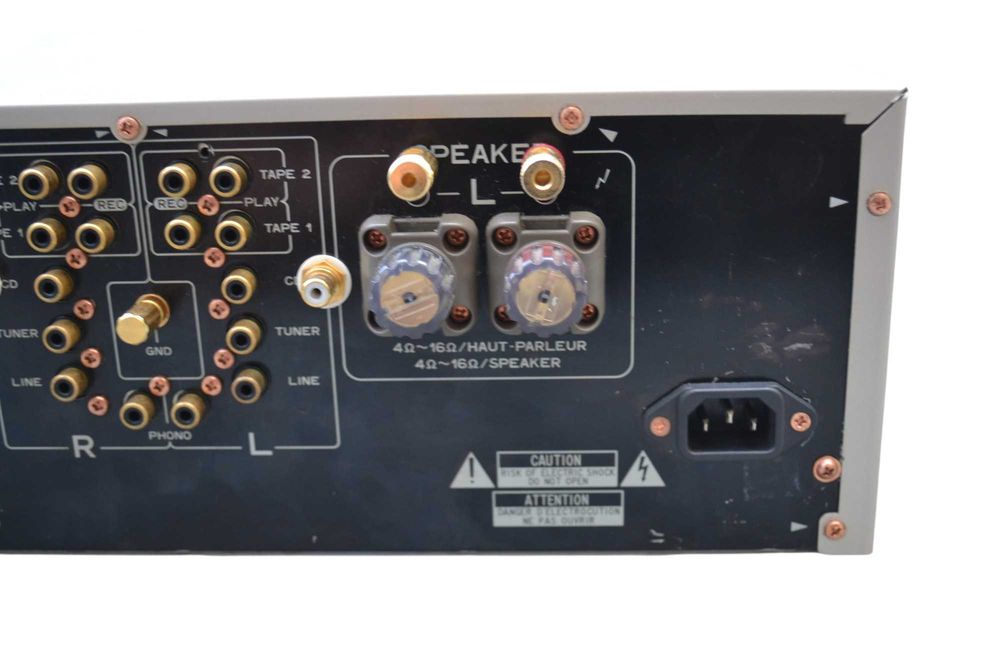

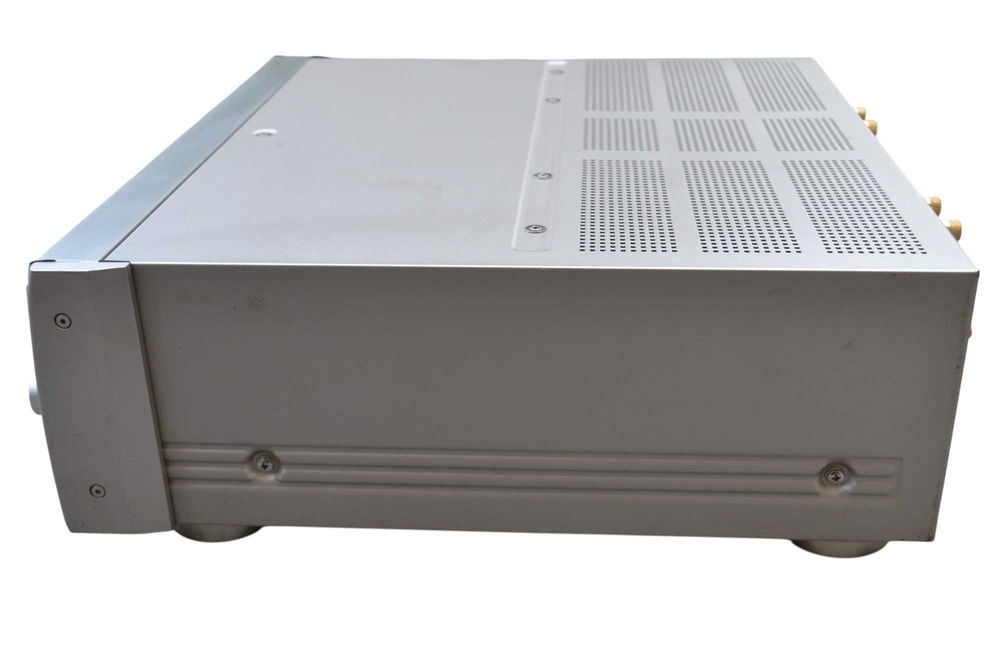

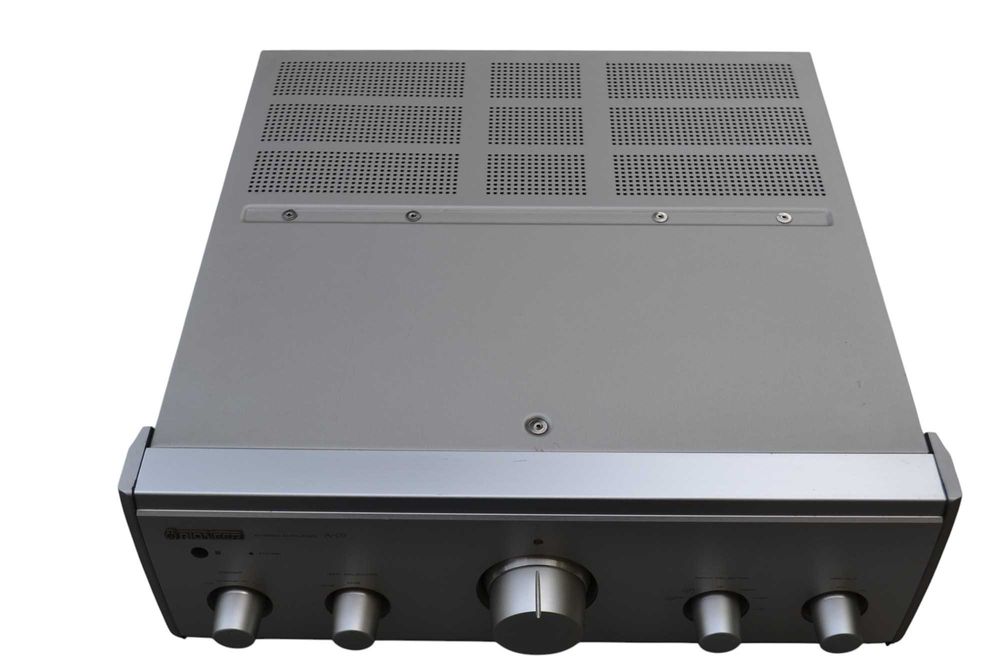

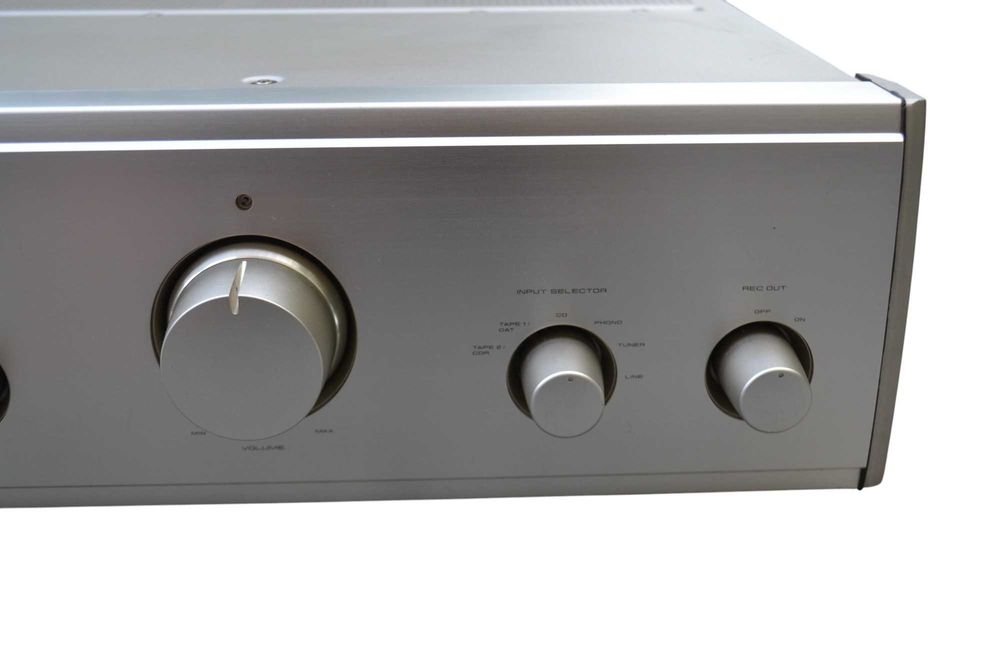

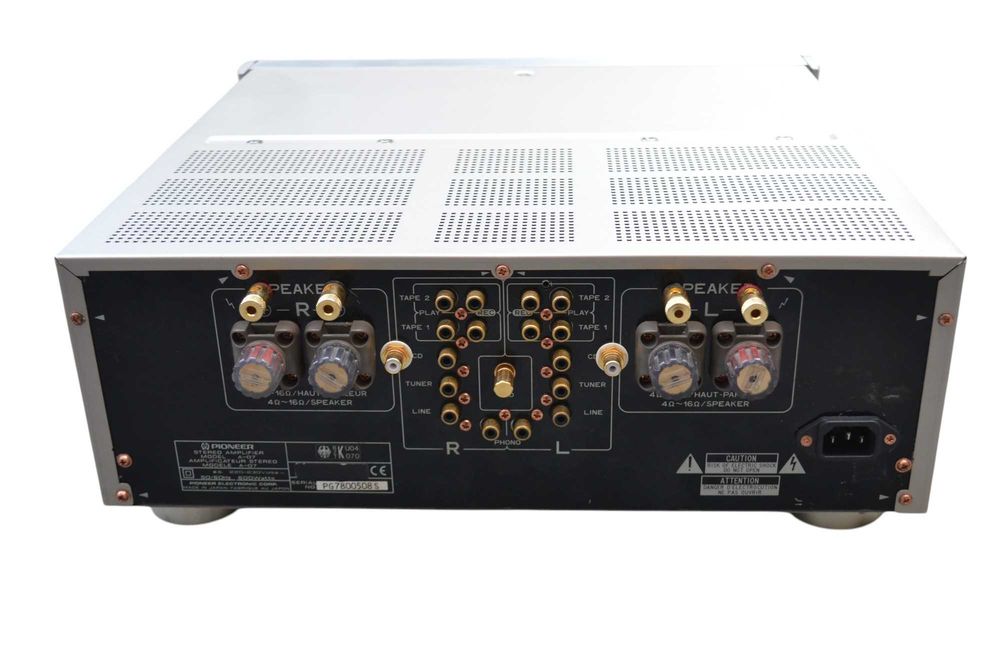

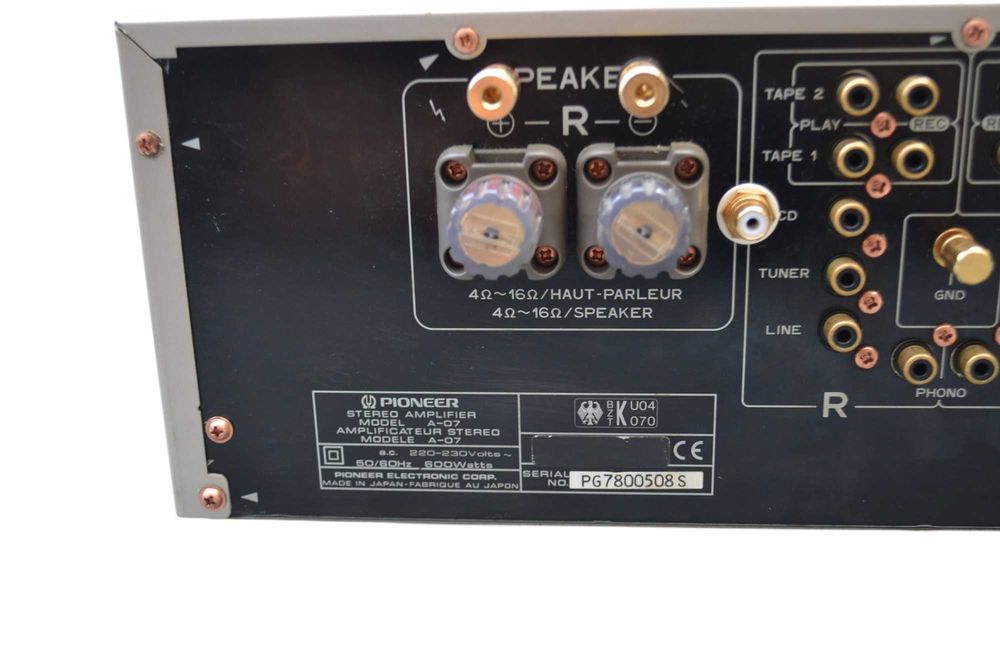

Amplificator Pioneer A-07- culoare sampanie, volum centru, gain selector, 2 transformatoare, 2 radiatoare, 6 iesiri, 600W consum din retea, mufe aurite, poze reale, senzor de telecomanda.



General

Manufacturer: Pioneer
Model: A-07
Type: Stereo integrated amplifier
Years of manufacture: 1995 - 1998
Made in: Japan
Color: Front, Cabinet Champagne
Power consumption: 600 W max.
Dimensions: 440 x 163 x 476 mm (WxHxD)
Weight: 18.4 kg
Original price approx.: 2'200 DM

Connections

Number of inputs:
Phono MM: 2.8 mV / 50 kOhm, max. 150mV (0.05% THD, 1 kHz).
Line: 200 mV / 50 kOhm Tuner: 200 mV / 50 kOhm CD: 200 mV / 50 kOhm

Tape Play 1, 2: 200 mV / 50 kOhm
Number of outputs:
Tape Rec 1, 2: 200 mV / 1 kOhm.
Headphones:
1 speaker pair: 4 - 16 Ohm

Technical Data

Continuous power Class-A
8 Ohm: 2 x 80 W (20 Hz - 20 kHz, distortion factor 0.01%)
4 Ohm: 2 x 120 W

Dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.01% or less
Attenuation factor: 300 (8 ohms)
Frequency Response:
Phono: 20 Hz - 20 kHz (RIAA, ±0.2dB).
High Level: 1 Hz - 150 kHz (+0 / -3dB)
Rise Time: 1.4us (10 kHz) 10 Hz - 100 kHz (± 1dB)
Signal to noise ratio:
Phono: 70 dB
High Level: 95 dB
Tone control:
Loudness: -
High Filter: -
Low Filter (Subsonic): -
Mute: -
Direct/Line-Straight:

Special Features

Gain selector, switchable between 26 dB and 40 dB
Volume and source selector switch motorized
Use of banana plugs with the standard speaker connectors not possible
No tone controls available
