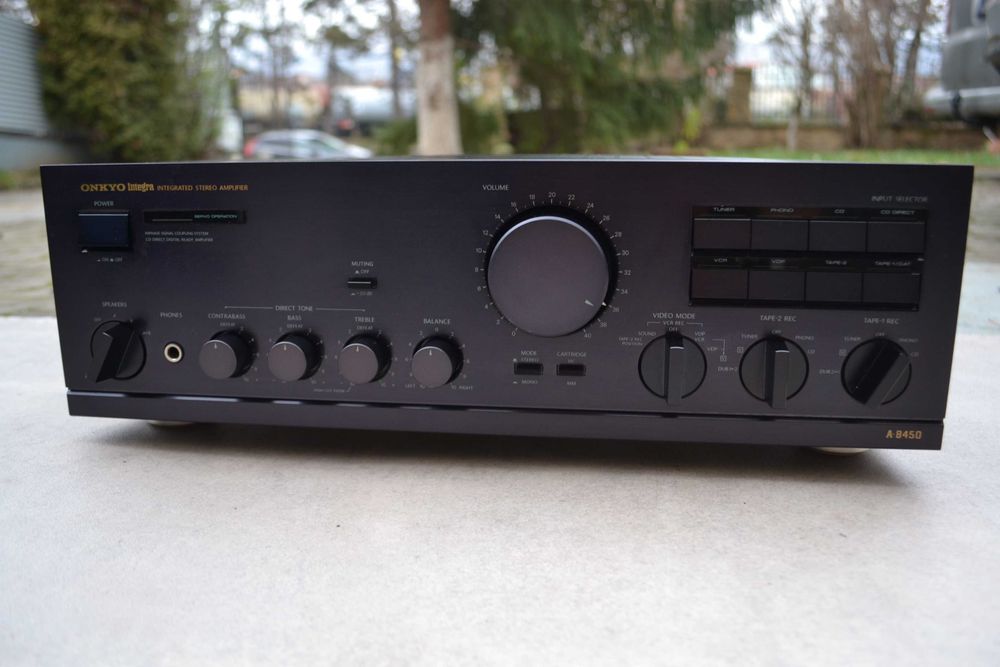

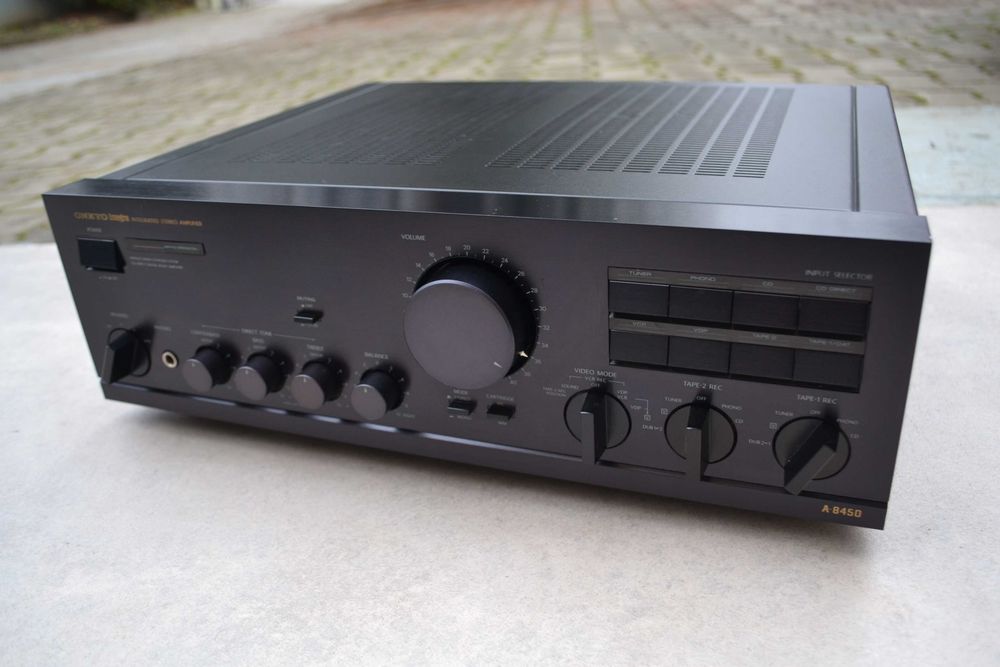

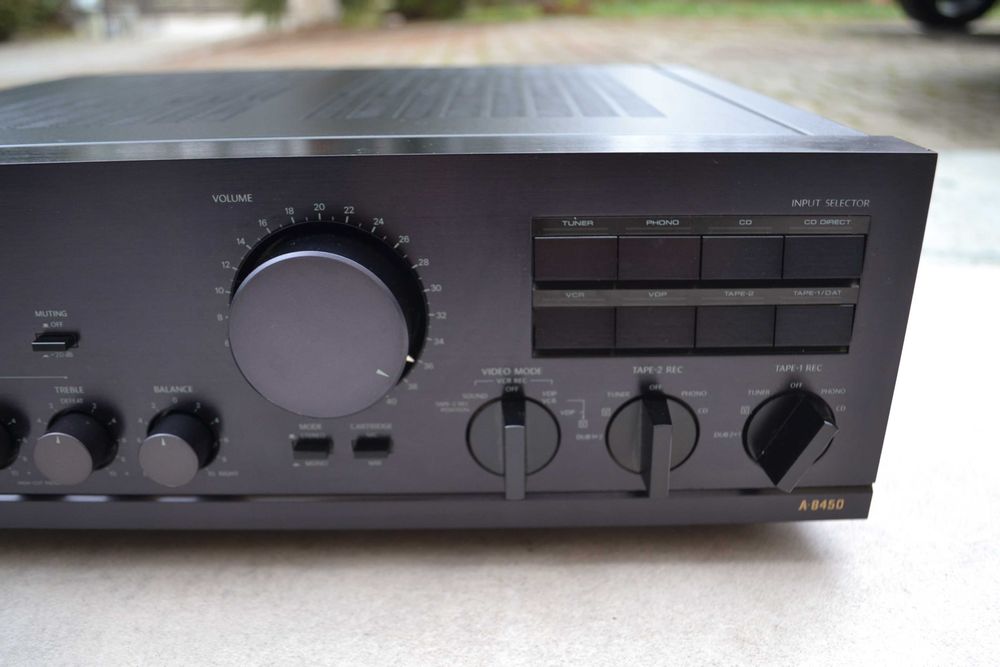

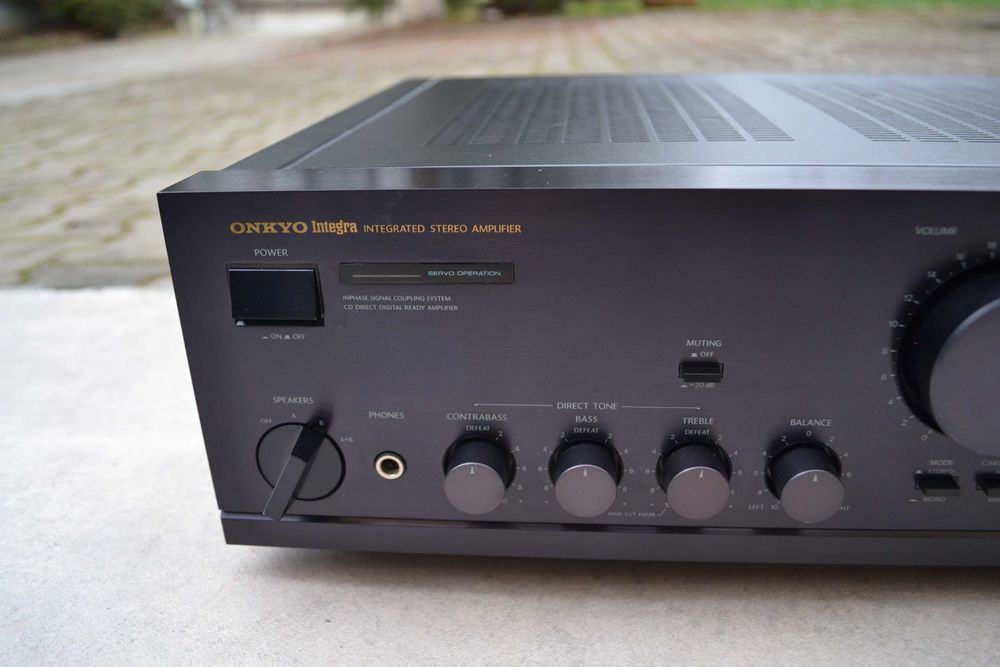

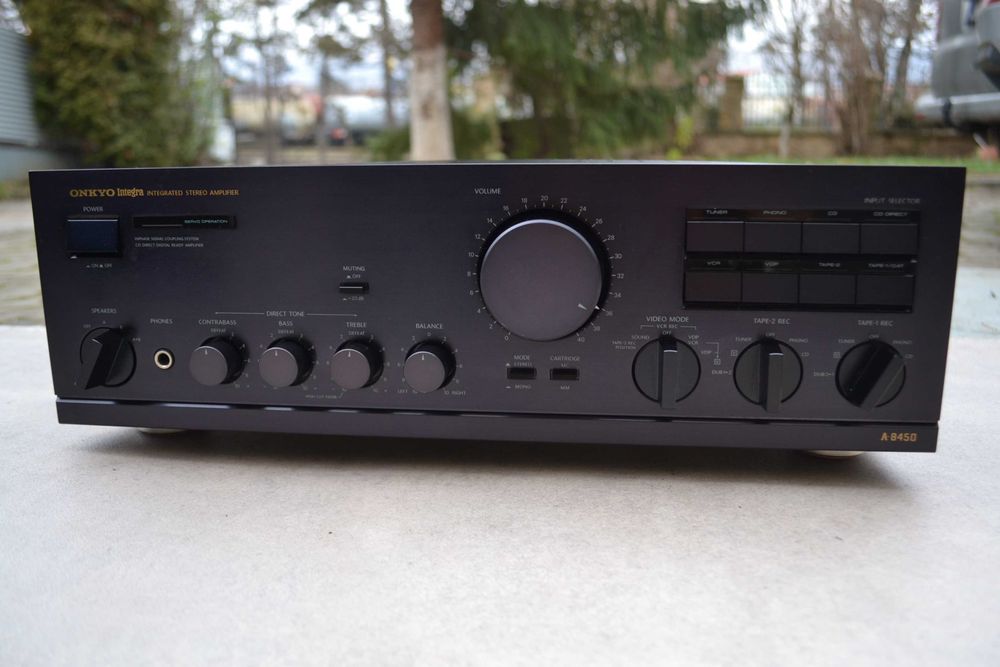

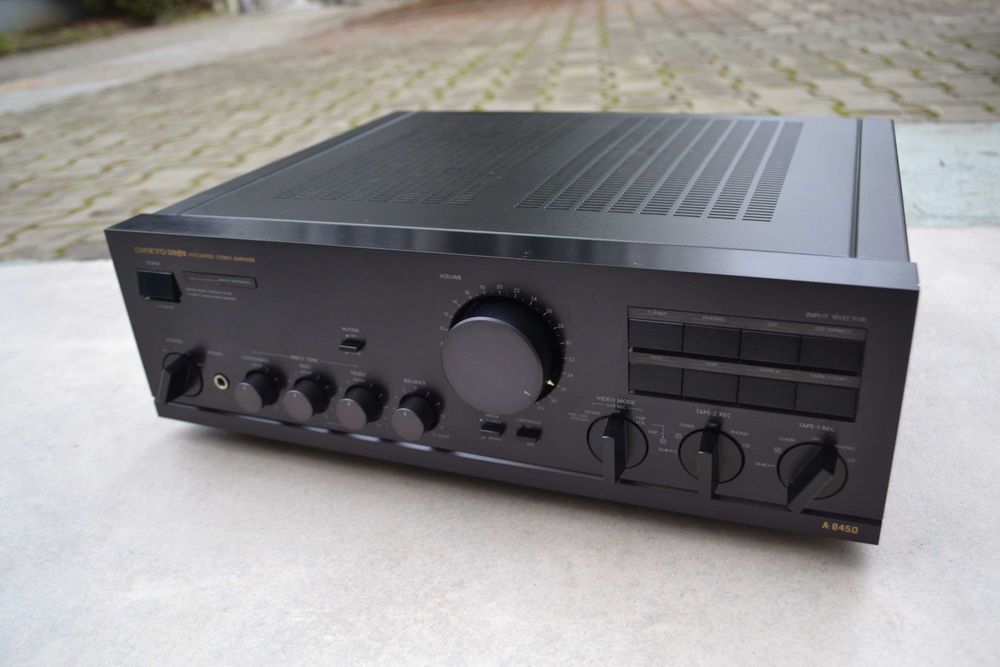

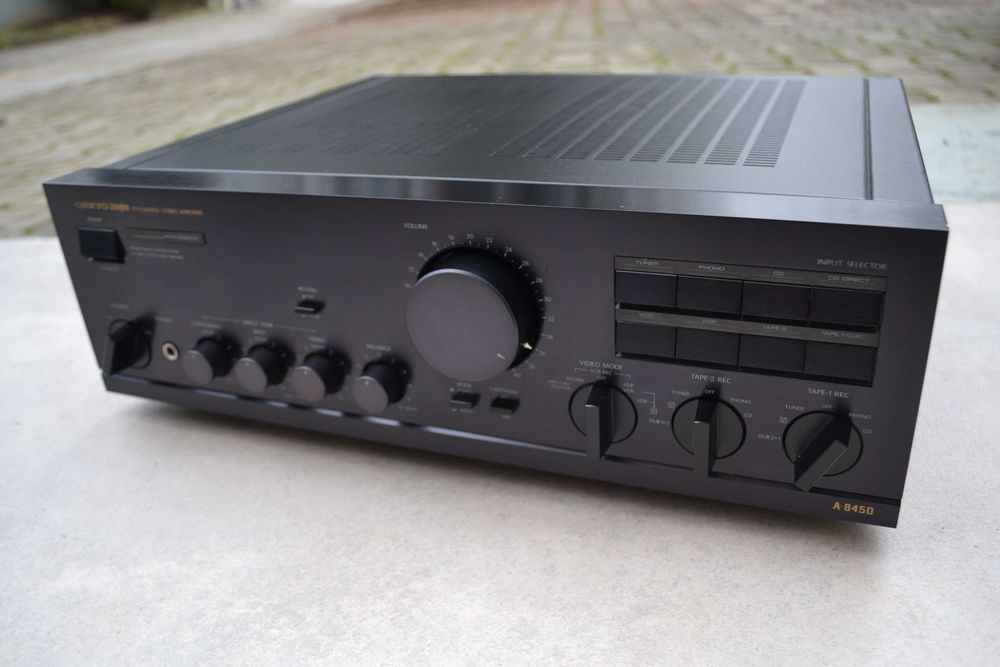

Amplificator Onkyo Integra A 8450: 7 intrari, 4 iesiri, impedanta 4-16 ohmi, 330 W consum din retea, culoare neagra, reglaje bass, treble, balance, Contrabass, Muting, Phono selector, CD Direct, poze reale, made in Japan.



General

Manufacturer: Onkyo
Model: A-8450
Year of construction: 1988
Type: Full amplifier
Remote control: No
Power consumption: 330 watts
Dimensions: 435 × 147 × 388 mm (W × H × D)
Weight: 11.2 kg
Color: black / silver
Neupreis approx .: 700.-DM

connections

Number of Inputs: 6 (Cinch)
Phono (MM / MC)
tuner
CD
2 × Aux (VCR and VDP)
2 × tape
Number of outputs: 3
Headphones (6.3 mm jack)
2 × Tape Rec.
2 × speakers

Technical specifications

RMS power:
2 × 155 watts at 4 ohms, 2 x 103 watts at 8 ohms
80 watt min. (Effective) to 8 ohms, both channels controlled, 20 Hz to 20,000 Hz, with a total harmonic distortion factor of not more than 0.008%
Output Power:
2 × 210 watts at 2 ohms
2 × 167 watts at 4 ohms
Total harmonic distortion: 0.008% at rated power
Attenuation factor: 50 (at 8 ohms)
Input (Sensitivity / Impedance)
Phono (MM): 2.5 mV / 50 kOhm
Phono (MC): 160 μV / 50 kOhm
Tuner, CD, CD direct, Aux, Tape: 150 mV / 50 kOhm
Tape Rec .: 150 mV / 1.5 kOhm
Output (level / impedance):
Frequency response: 2 - 50,000 Hz (+0, -1dB)
Tone control:
Contrabass: ± 10 dB (at 20 Hz)
Bass: ± 10 dB (at 70 Hz)
Treble: ± 8 dB (at 20 kHz)
