Amplificator Stereo Solid State - marca MONACOR model SA-600 - anii '70 Arata si functioneaza perfect - SUNA SENZATIONAL DE BINE .Are un sunet foarte curat - lampos . UN MODEL - DE EXCEPTIE !. este made in JAPAN

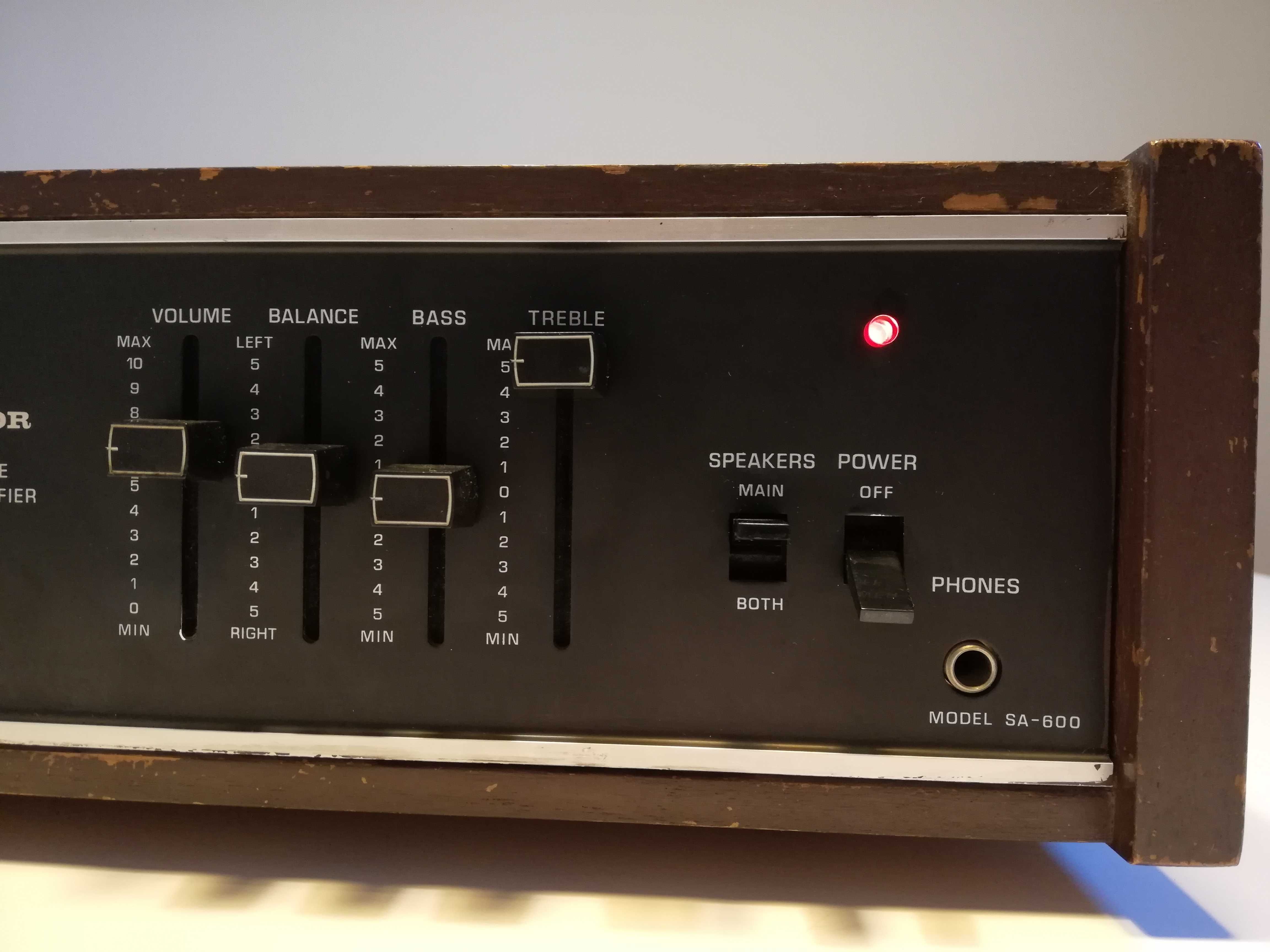

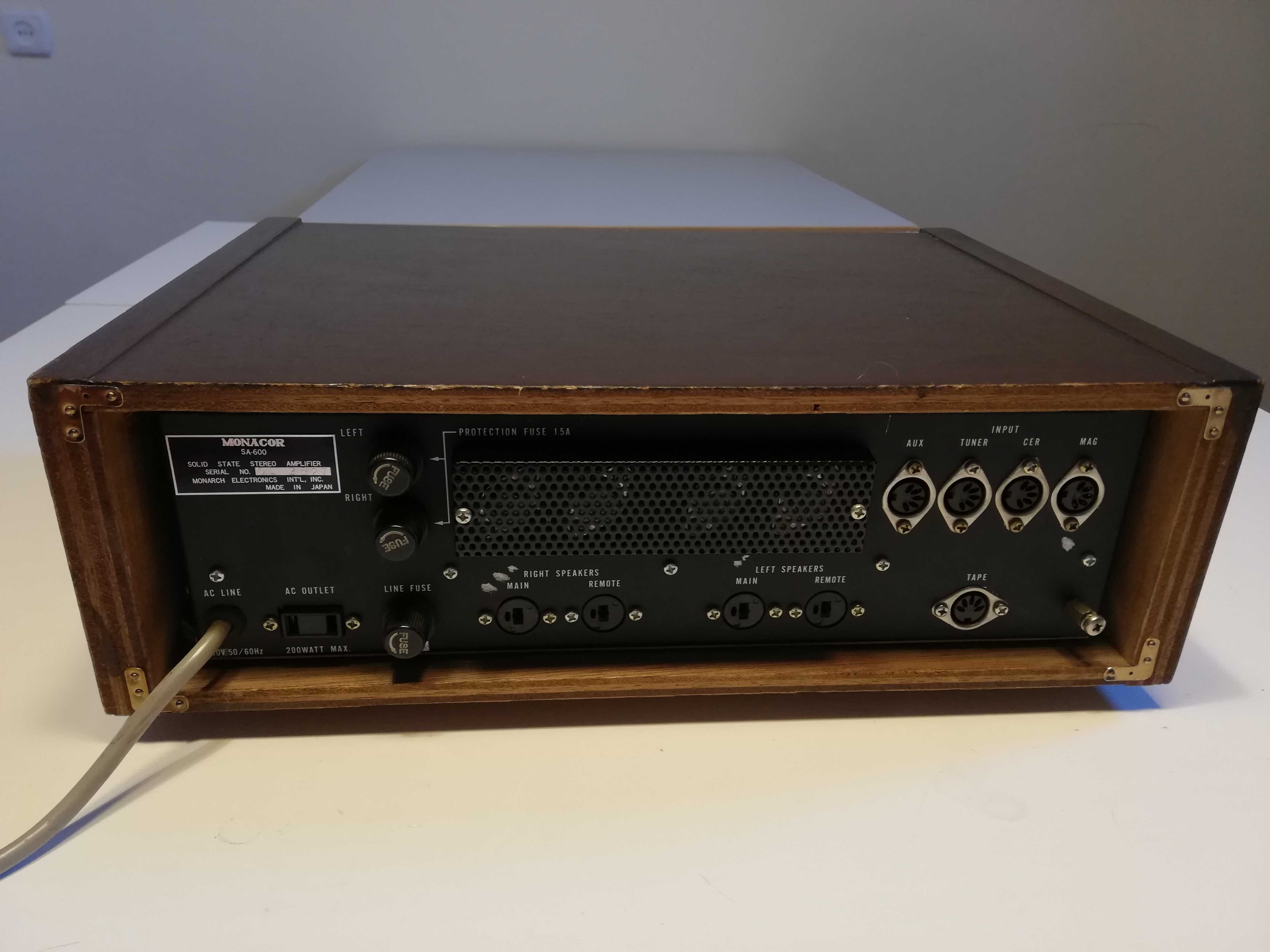

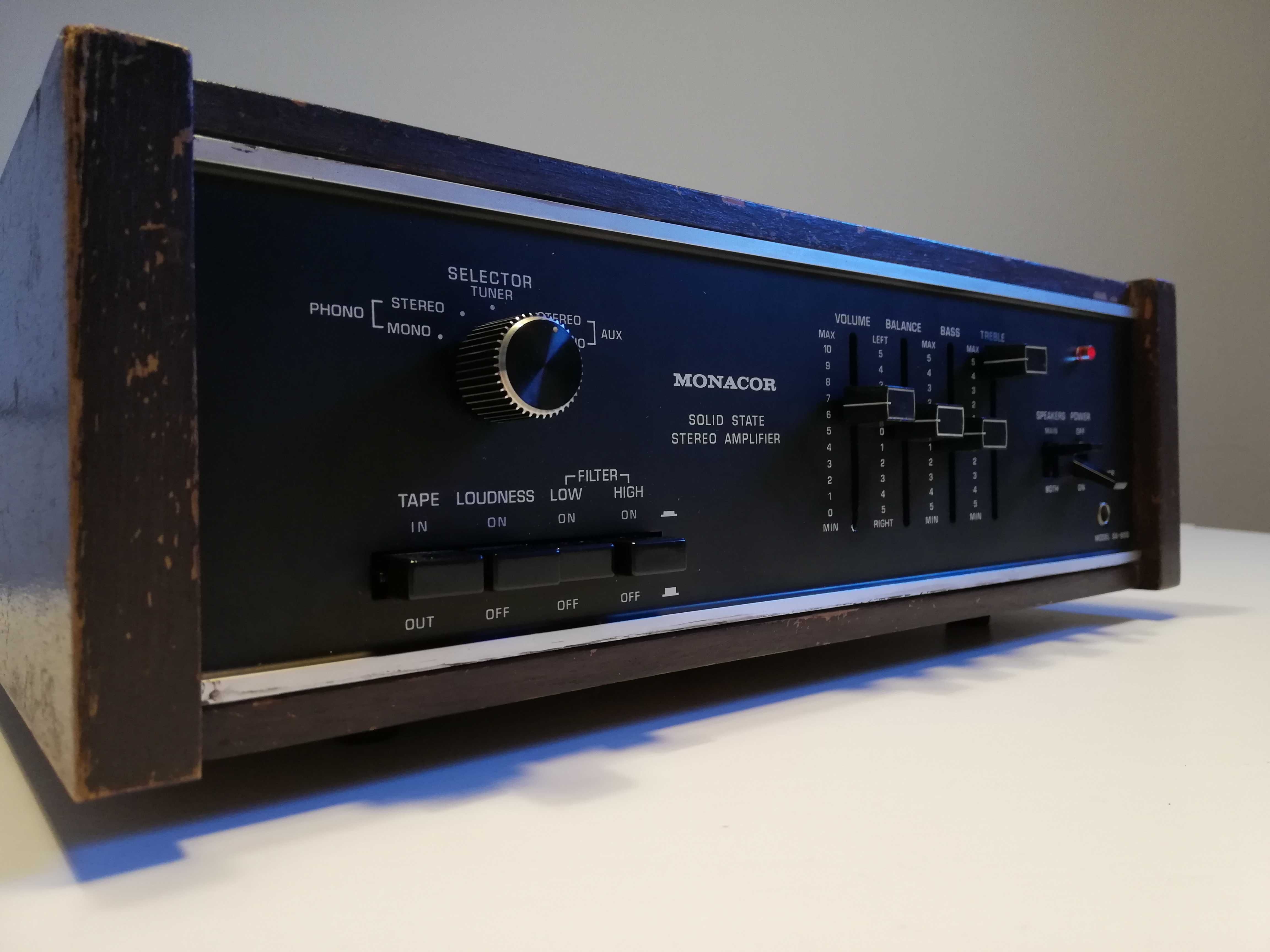

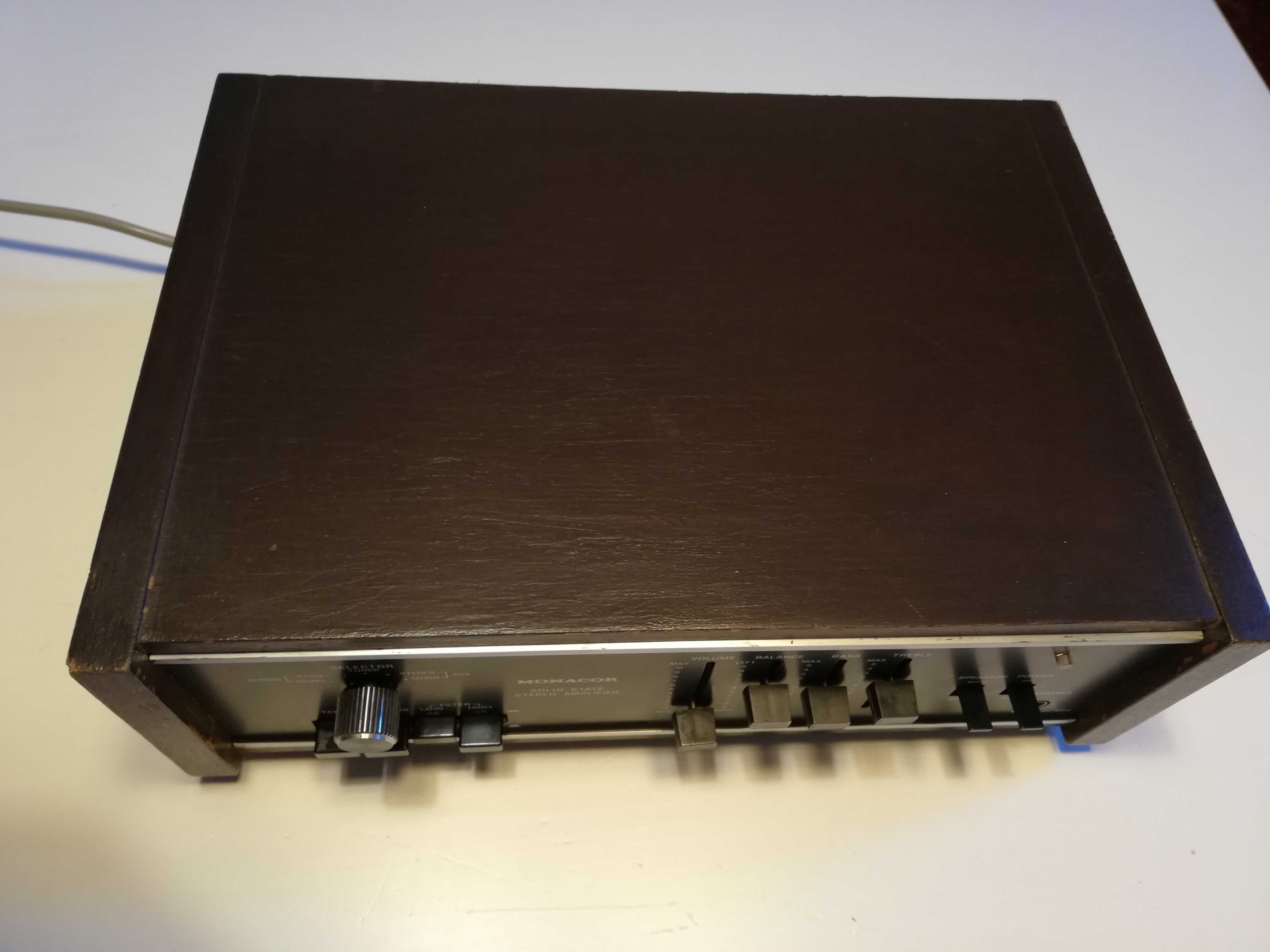

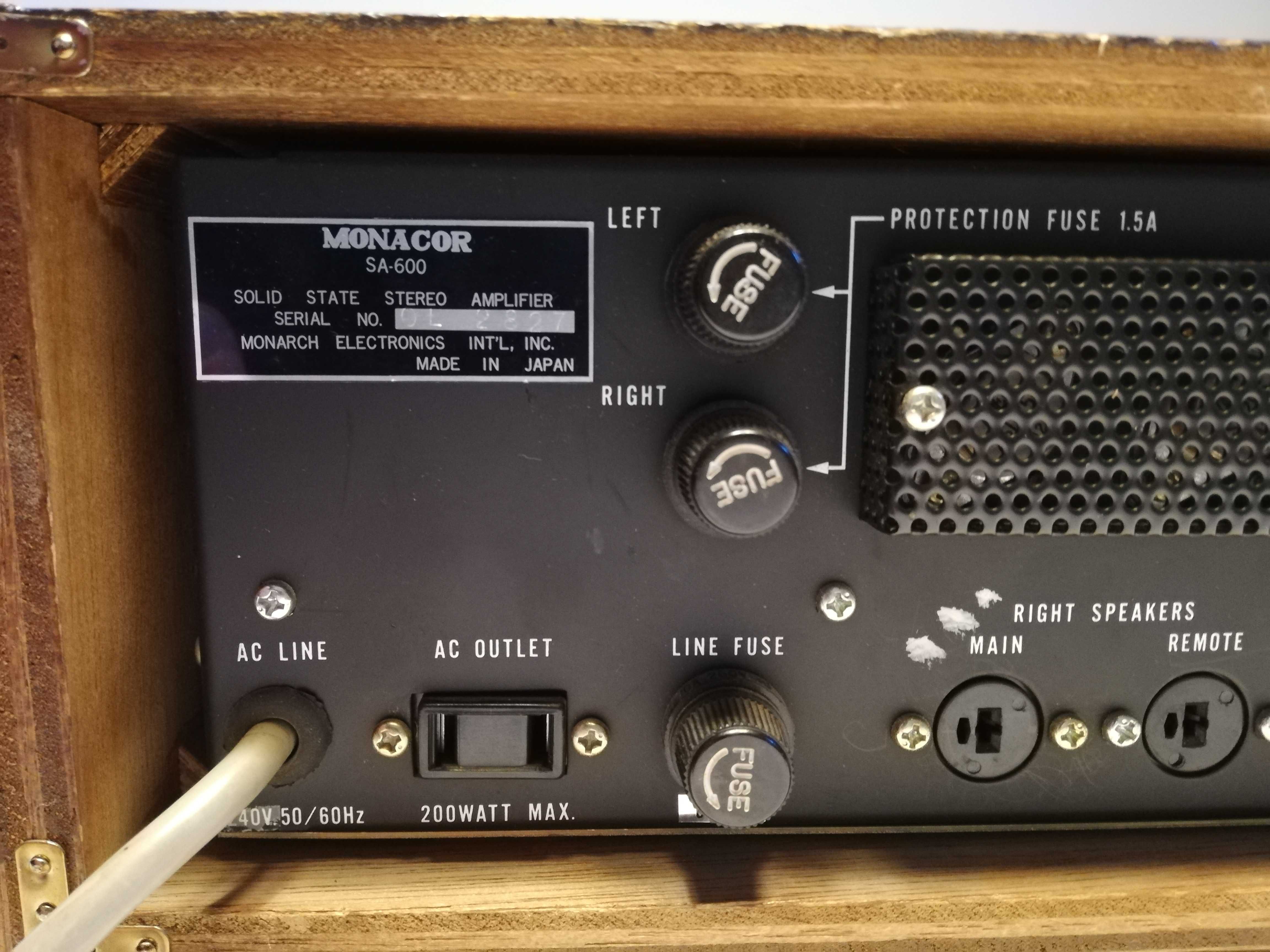

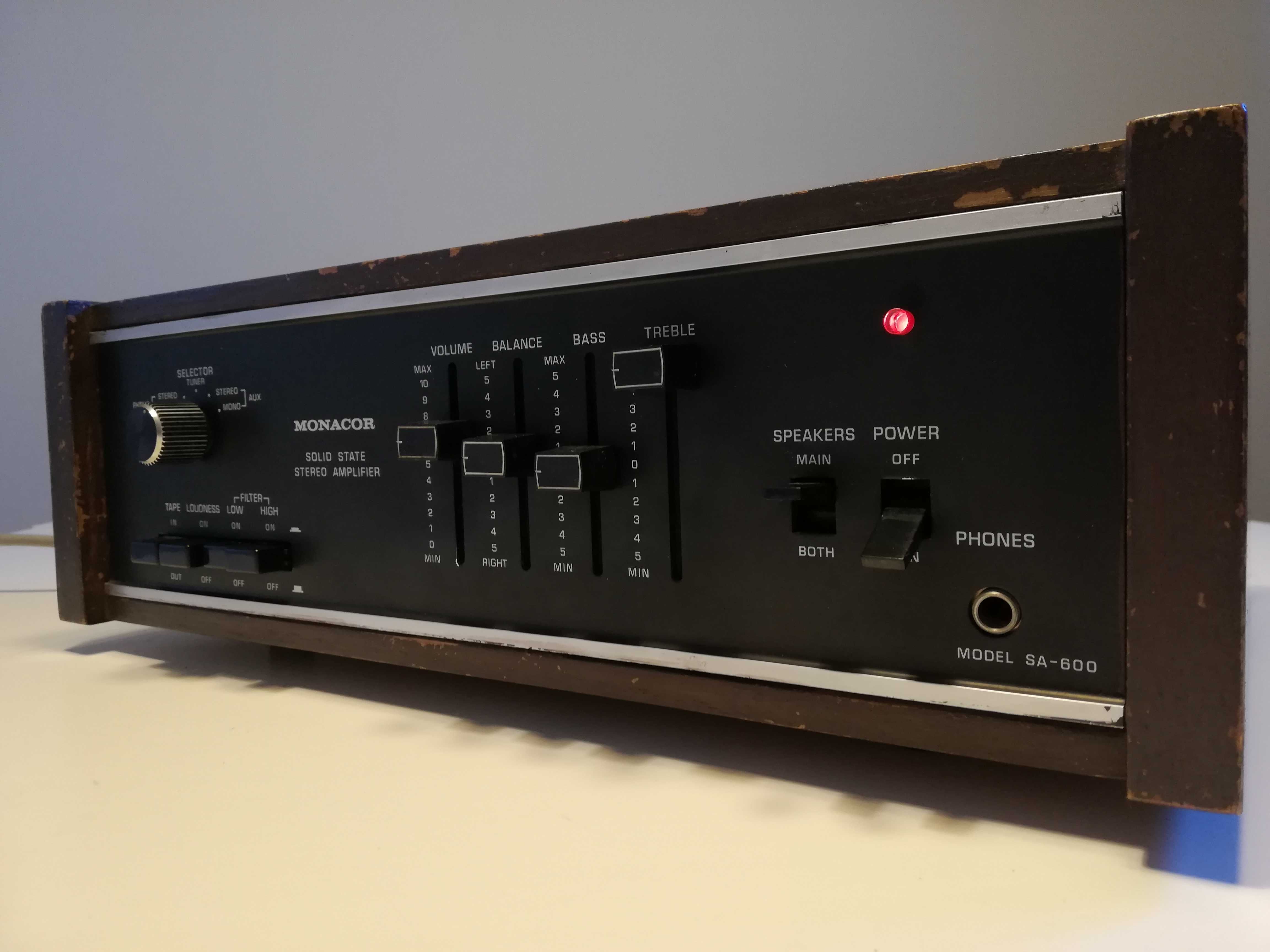

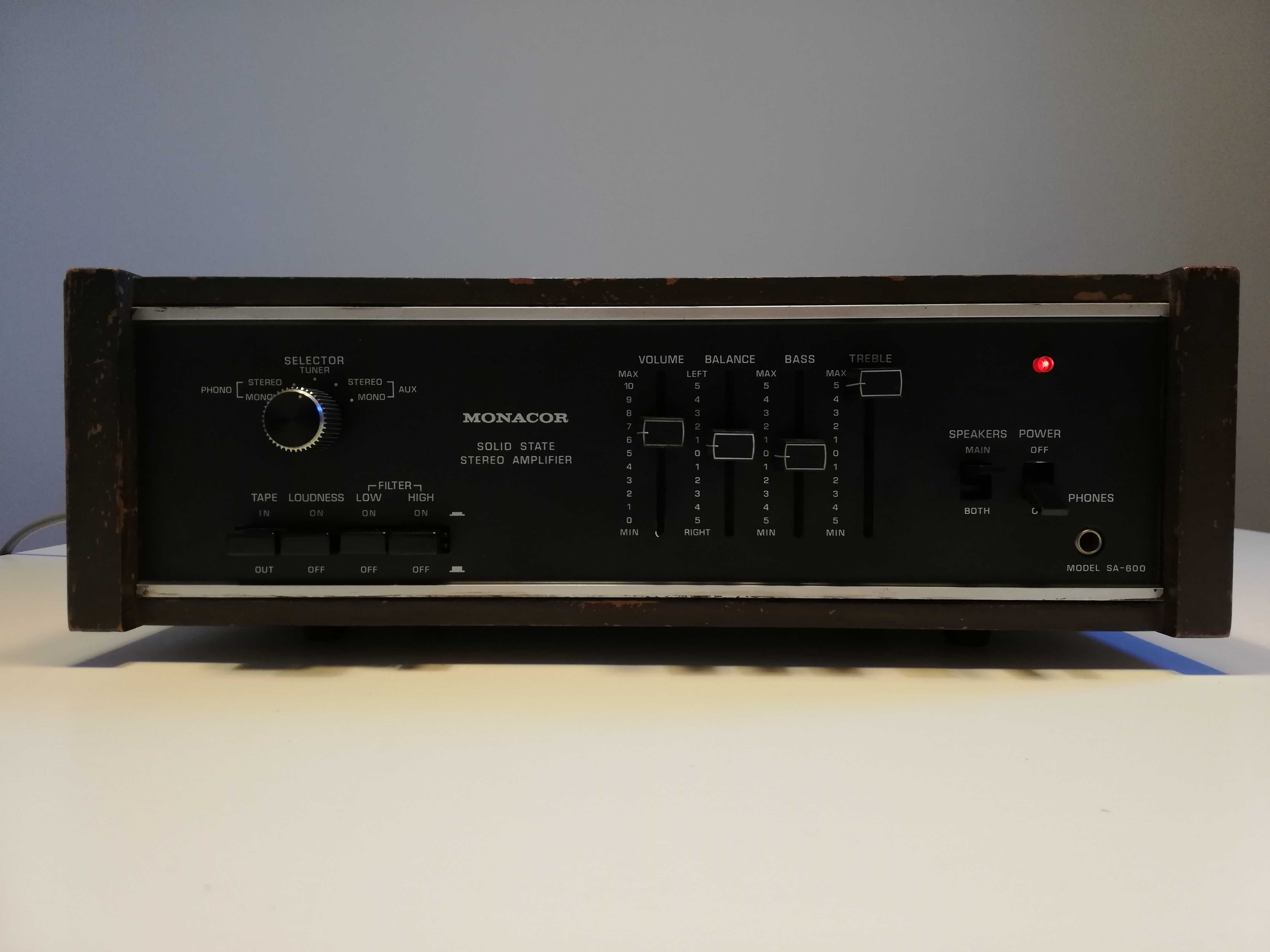

Brand: Monacor Model: SA-600 The Monacor SA-600 is a solid-state transistor integrated amplifier. It was built in the early to mid 1970s and has the warm seventies sound typical of that time, which is highly appreciated among connoisseurs today. Technical data Solid-state stereo transistor amplifier Walnut wood cabinet Music power: approx. 2 × 35 watts Sine power: 2 × 22 watts into 4 ohms Frequency response: 20-60,000 Hz Distortion factor: less than 0.8 % at full load Inputs: Phono (stereo and mono selectable). Tuner Aux (stereo and mono) Tape Tape in + out Controls for volume, balance, bass and treble Loudness Low- and High-Filter Speakers: Main (A) and Both (A+B) Headphone output (for jack plug) Dimensions: 375 mm × 130 mm × 270 mm (W × H × D) Weight: 6 kg Original price 1974: 339 DM

Stereo amplifier SA-600 Monacor, Bremen Country Germany Manufacturers /

Brand Monacor, Bremen Year 1974 ?

Category Audio Amplifier or

. Technical Specifications Number of Transistors 18 Semiconductors Main principle Audio amplification Wave bands - without Power type and voltage Alternating Current supply (AC) / 117; 220; 240 Volt Loudspeaker - This model requires external speaker(s). Power out 44 W (65 W max.) Material Wooden case

from Radiomuseum.org Model: Stereo-Amplifier SA-600 - Monacor, Bremen Shape Book shelf unit. Dimensions (WHD) 380 x 130 x 275 mm / 15 x 5.1 x 10.8 inch Notes Monacor SA-600 Stereo NF amplifier with 2 power amplifiers, frequency response 20-60.000 Hz (1 dB), distortion factor of 0.8% at full load, power number: 2 x 22 Watt continuous power at 4 2 x 17 Watt continuous power at 8 Housing design: nußbaum Custom Tuner: Monacor ST-60X The operating instructions mention in the technical data the dimensions of 34.4 x 10.8 x 27.3 cm, possibly measured without wooden housing. Device was also offered as: Monarch SA 600 and Prinzsound SA 2001 Net weight (2.2 lb à 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb) Price in first year of sale 399.00 DM
