Power Output (8 / 4 Ohm RMS) 45 W / 60 W
Frequency Response 10 Hz - 70 kHz
Total Harmonic Distortion 0.05 %
Damping Factor 100
Input Sensitivity: MM 2.2 mV / 47 kOhm
Signal to Noise Ratio: MM 83 dB
Input Sensitivity: High level 200 mV / 20 kOhm
Signal to Noise Ratio: High level 102 dB (2V input)
Channels 2
Current Feedback Topology
Phono EQ: Standard
HDAM version SA3, SA2
Power Transformer: Toroidal
High Grade Audio Components
Customised Components
Aluminium extrusion heat sink
Balance / Bass / Treble / Loudness
Linear Drive Power Supply
Shottky diodes
Input buffer amp (all inputs)
System block shielding: none
Source Direct
Standby Mode

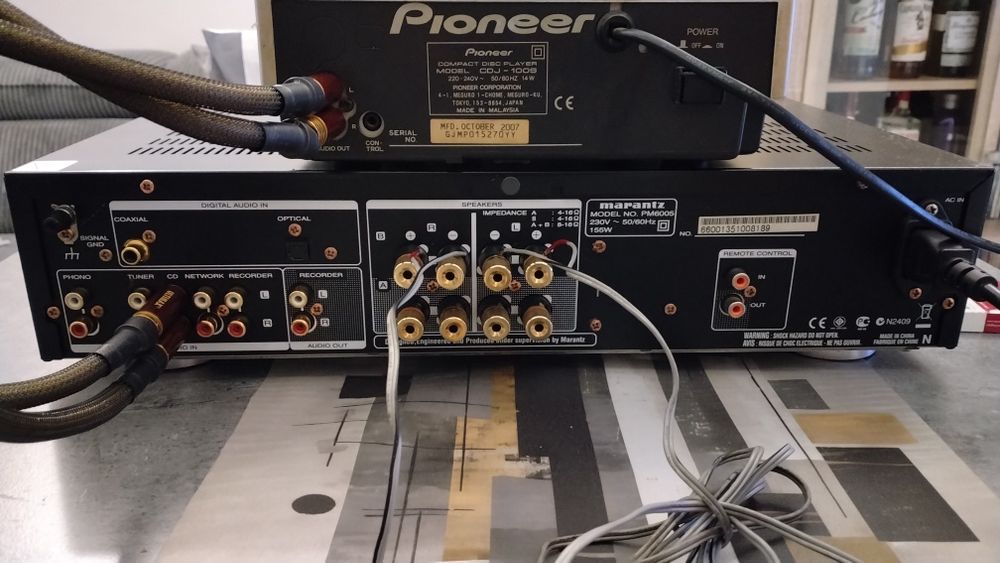

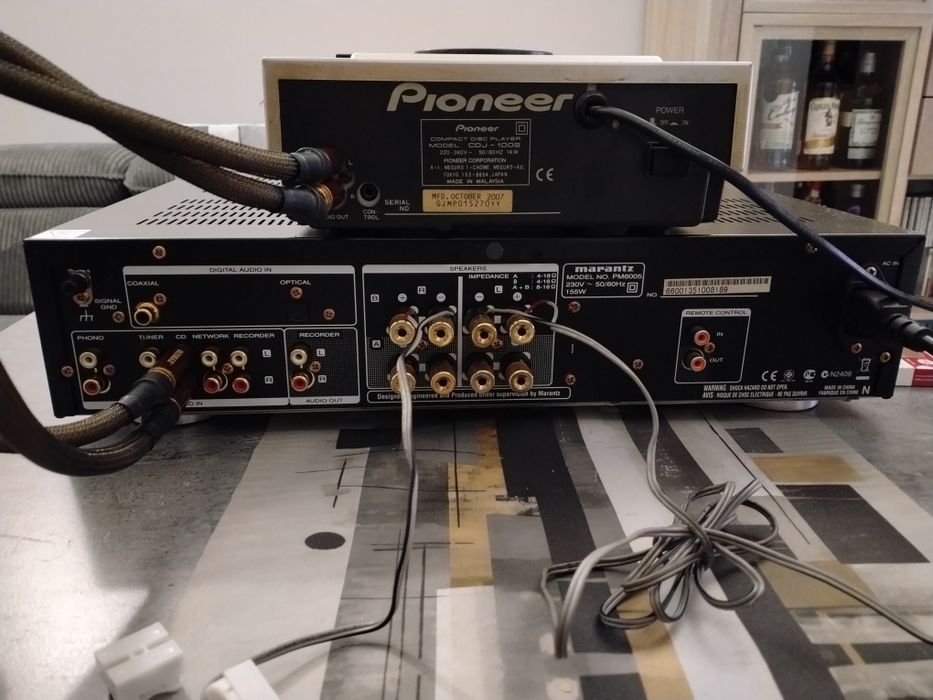

Audio Inputs 5
Digital Inputs: Coaxial / Optical
Phono Input: MM
Audio Outputs 1
Gold Plated Cinch
Speaker A / B
Speaker Terminal: Screw (gold)
Number of terminals 4
D-Bus
Headphone Out
iPod input (direct / docking station)
Available colors:Black / Silver-Gold
Metal Front Panel
Power Consumption in W 155
Standby Consumption in W 0.3
Auto power off
Detachable Power Cable

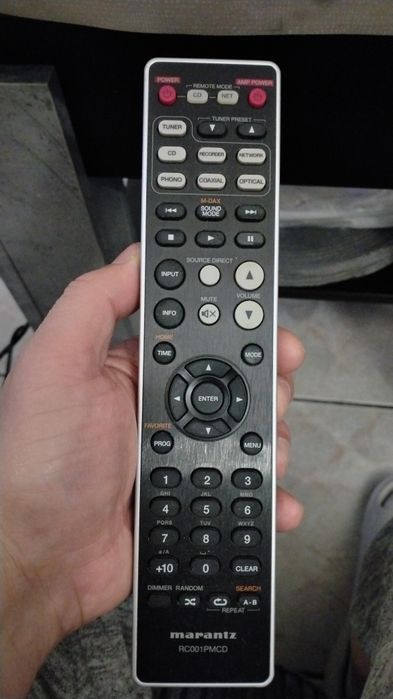

Remote Control RC001PMCD
System Remote Function
Maximum Dimensions (W x D x H) in mm 440 x 370 x 105
Weight in kg 7.6
