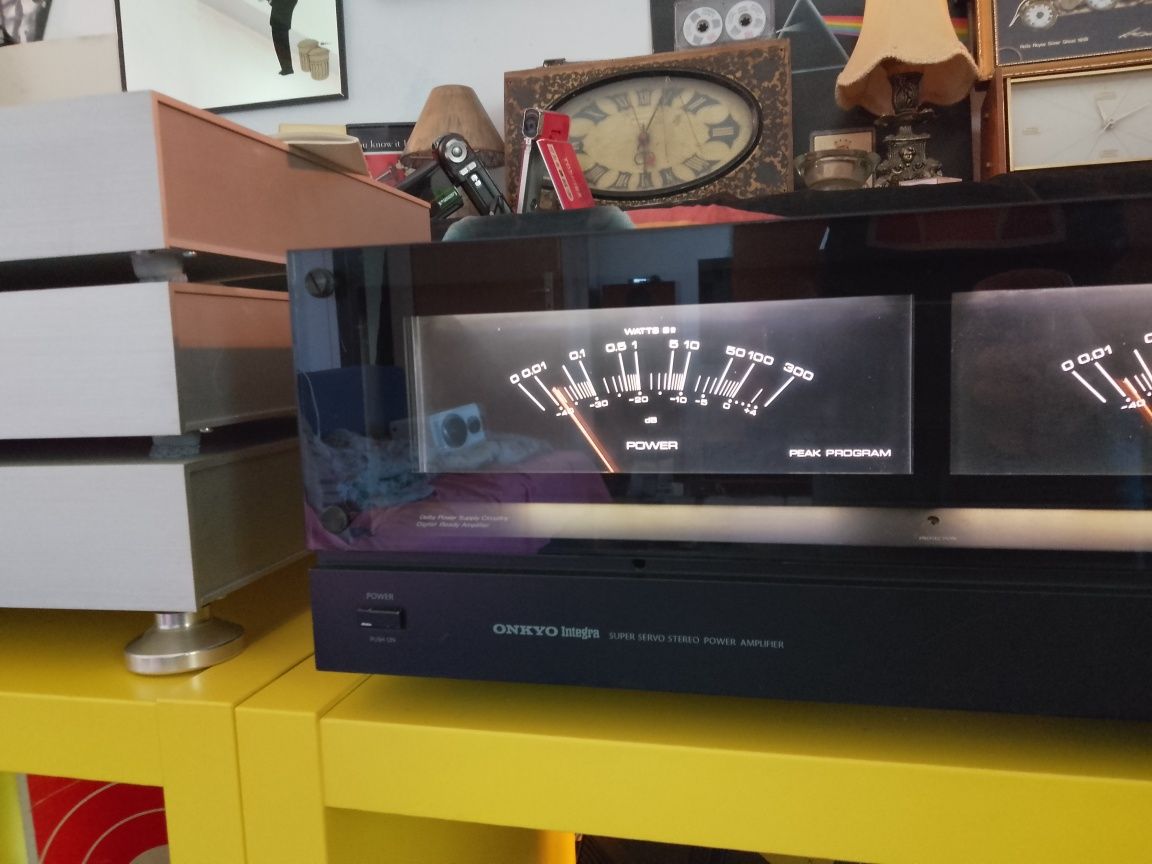

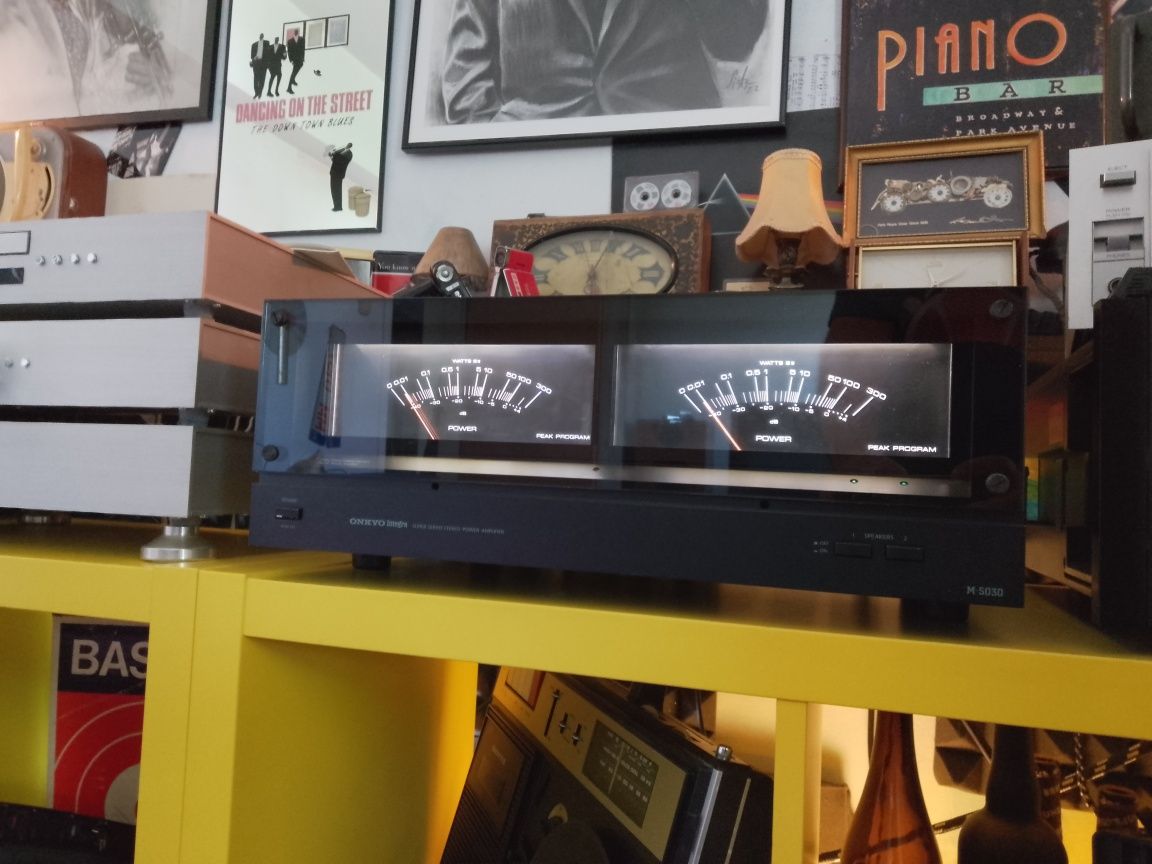

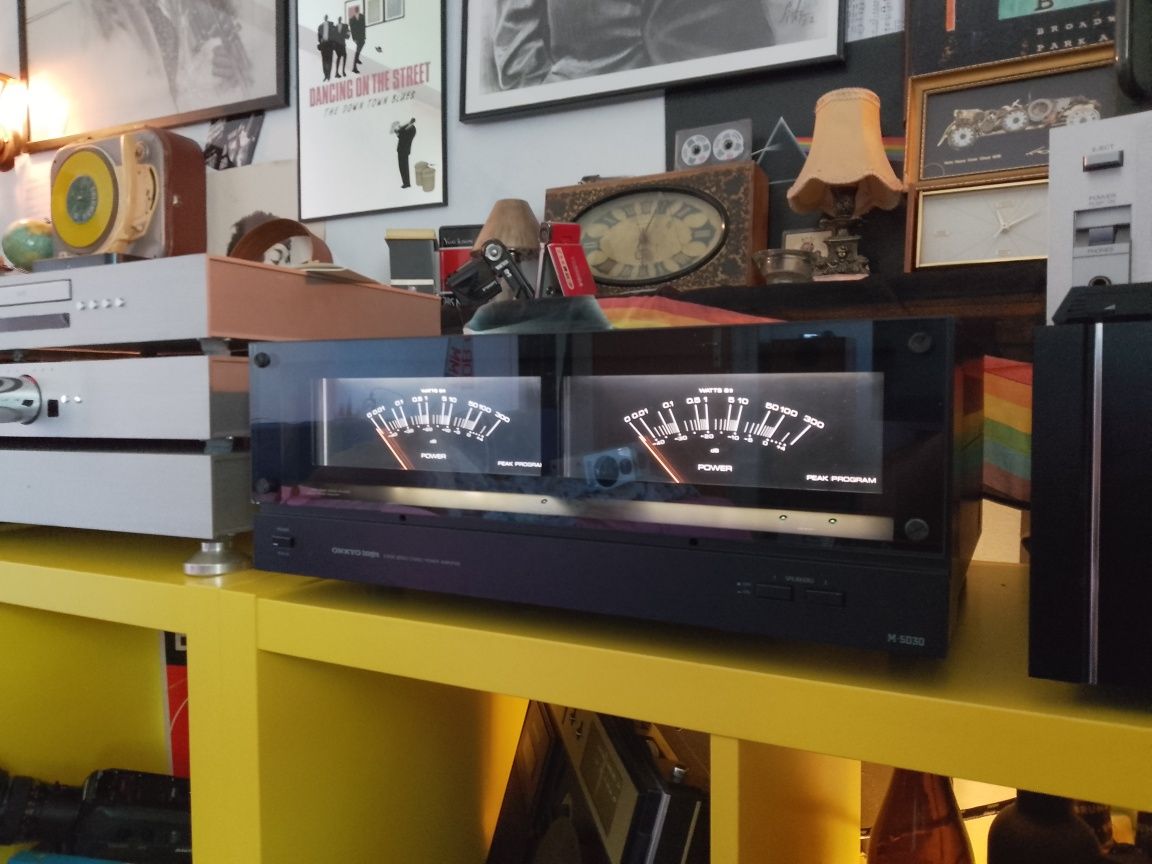

Aparat de top cu un design de invidiat dar și cu un sunet pe măsură. Arata bine cu acele VU imense.. Doresc sa o vând, fără schimburi. In anumite localități pot livra personal. Aparatul nu a suferit intervenții.

Manufacturer: Onkyo
Model: M-5030, component of the overall system Onkyo MC-6000
Type: Stereo power amplifier
Construction period: 1983 - 1987
Color: Black

Power consumption: 580 W max.
Dimensions: 450 x 174 x 422 mm (WxHxD)
Weight: 17.2 kg
Original price approx.: 1'500 DM

Connections

Number of inputs:
Line In: 1 V, 20 kOhm
Number of outputs:
Headphones: 8 Ohm
2 pairs of speakers

Technical Data

Continuous power (at distortion factor)
8 Ohm: 115 Watt
4 Ohm: 160 Watt
Frequency response 1 Hz - 100.000 Hz + 0 - 3.0dB at full output power
Total harmonic distortion max. 0.005% at nominal output power and 20Hz - 20,000Hz
Impedance Ratio (A-weighted) 94 dB
Input sensitivities and impedances 1V at 47 kOhm

Special Features

Completely channel-separated construction
Two huge power transformers (dual mono)
Four large electrolytic capacitors
Two large VU meters
Full-surface and tinted front panel made of real glass
High quality, solid sheet steel cabinet
Two speaker pairs switchable
