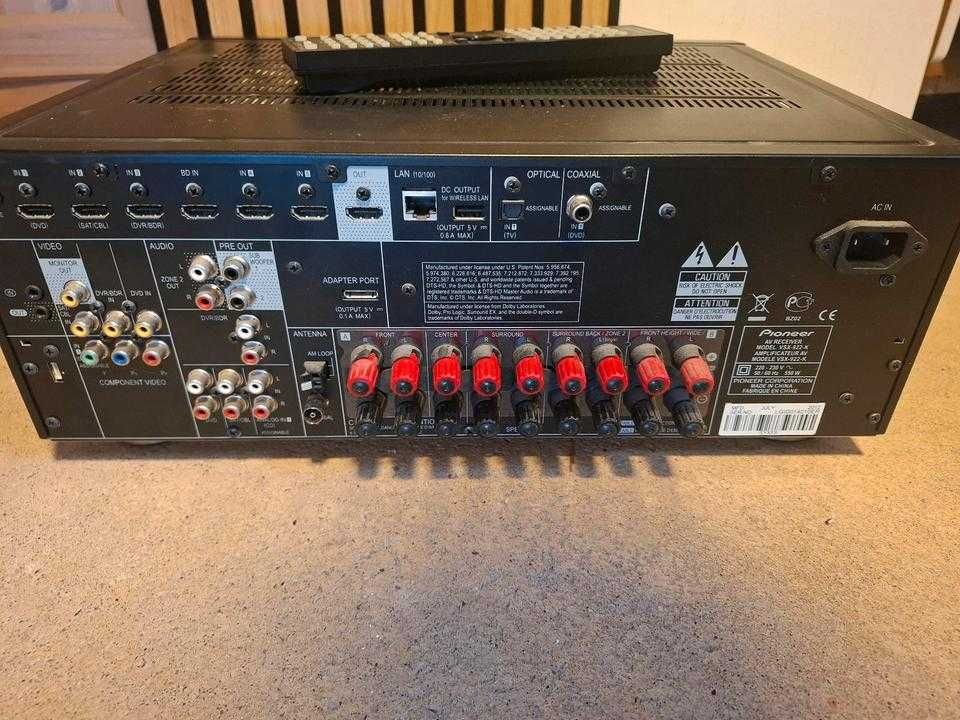

Vand amplificator Pioneer VSX 922 7.1 in buna stare de functionare ,import Germania date Specifications
Power Output VSX-922-K
Power Consumption (in use / standby) 550 W / 0.30 W
Main Features VSX-922-K
Impedance at Output Level 6Ω
Number of Channels 7
Input Connections • 6 x HDMI (1080p upscaling)
• 4 x Composite
• 1 x Component
• 1 x Coaxial
• 1 x Optical
• 1 x USB host
• 1 x iPod/iPhone Digital via USB (cable included)
• 1 x Ethernet
• 1 x Bluetooth adapter port for AS-BT200
• 1 x rear USB charge port for AS-WL300 Wireless Converter
File Playback Via LAN/USB: MP3, WAV, AAC, WMA, FLAC
192 kHz/24-Bit Audio playback: WAV, FLAC
HD Audio Formafts Dolby TrueHD, DTS-HD Master Audio
Audio Return Channel Yes
DLNA Certified Yes (v1.5)
Windows 7 Certified Yes
Input & Output connections VSX-922-K
Digital Optical Input/Output 1/- (assignable)
Digital Coaxial Input/Output 1/- (assignable)
USB Host (Front) Yes
Apple Compatibility VSX-922-K
Works with iPad Yes
AirPlay Yes
iPhone Control Button Yes
Compatible Generations iPad,iPad2, iPhone 4S,iPhone 4,iPhone 3GS,iPhone 3G,iPhone, iPod touch 4G/3G/2G/1G, iPod nano 6G(Audio only)/ 5G/4G/3G
Supported Functions • Audio & video playback
• On-screen album art
• Charging
Network Features VSX-922-K
Wireless LAN Yes (with optional AS-WL300 adapter)
Surround Sound Formats VSX-922-K
Dolby Pro Logic II Yes
Dolby True HD Yes
DTS-ES Yes
DTS-Express Yes
DTS-HD High Resolution Audio Yes
DTS-HD Master Audio Yes
Audio Features VSX-922-K
Dynamic Range Control Yes
Headphone Surround Yes
MCACC Yes (Advanced, 9-band)
PQLS Yes (Multi-channel)
Sound Delay (LipSync) Yes
Advanced Sound Retriever Yes (Multi-channel)
Sound Retriever AIR Yes
Sound Retreiver link Yes
Stream Direct Yes
Virtual Depth Yes
Virtual Surround Back Yes
Video Features VSX-922-K
Deep Colour Yes
3D Ready Yes
x.v.Colour Yes
HD Digital Film Direct 24 Yes
Upscaling to 1080p Yes
Advanced Video Adjust Yes
PureCinema Yes
Stream Smoother Yes
Power Output VSX-922-K
Rated Power Output 150W per channel
Amplifier Specifications VSX-922-K
D/A Converter 192 kHz / 24-bit
Main Features VSX-922-K
Output Power per Channel 150W
Output Connections • 1 x HDMI
• 1 x Composite
• 2 x Subwoofer pre out
Control with HDMI Yes
On-Screen Display (GUI) via HDMI only in English, French, Italian, German, Spanish, Dutch and Russian
Firmware updates Yes (via Internet or USB)
Input & Output connections VSX-922-K
Bi-Amplifier Yes
Bluetooth Adapter Port Yes
Component Video Input/Output 1/- (assignable)
Composite Input/Output 4/1
Ethernet 1
Large speaker terminals Yes
Pre-amp Output 2 SW
Speaker A/B Versatile speaker configuration
Apps VSX-922-K
iControlAV2012 Yes
Air Jam Yes
AVNavigator for PC & iPad
Apple Compatibility VSX-922-K
Works with iPod Yes (cable included)
Works with iPhone Yes
Surround Sound Formats VSX-922-K
DTS Neo: 6 Yes
DTS 96/24 Yes
Audio Features VSX-922-K
Digital Noise Reduction Yes
DSD-to-PCM Convertor Yes (Multi-channel)
Front Stage Surround Advance Yes
Multizone Function Yes (2)
Phase Control Yes
Standing Wave Control Yes
Symmetric EQ Yes
Virtual Wide Yes
X-Curve Yes
Video Features VSX-922-K
HDMI Standby Through Yes
HDMI Standby Input Switching Yes
Power Output VSX-922-K
Power output per channel 150W
Condition 1kHz, 1% THD, 6Ω
Auto Power Down Yes
Construction VSX-922-K
Design Discrete Amplification Type
Amplifier Specifications VSX-922-K
Digital Signal Processor Texas Instruments Aureus(TM) TMS320DA808
A/D Converter 96 kHz / 24-bit
Dimensions (W x H x D) 435 x 168 x 362.5 mm
Weight 9.8 kg
Main Features VSX-922-K
Stand-by Pass Through Yes
AVNavigator Yes
Internet Radio Yes
vTuner Yes
Remote Control Glow-key, learning remote control
Input & Output connections VSX-922-K
HDMI Input/Output 6 (5 assignable) /1
Headphone Yes
IR In/Out 1/1
Surround Sound Formats VSX-922-K
Dolby Digital Yes
Dolby Digital EX Yes
Dolby Digital Plus Yes
Dolby Pro Logic IIx Yes
Dolby Pro Logic IIz Yes
DTS Yes
Surround Modes 15 + 1 for Phones
Audio Features VSX-922-K
AM/FM Tuner with RDS Yes
Tuner Pre-set Stations 63
Auto Level Control Yes (Multi-channel)
Auto Surround Yesnice,
