ACCUPHASE DAC-50 Digital input board - Original Box!
ACCUPHASE DAC-50 Digital input board - Original Box!
ACCUPHASE DAC-50 Digital input board - Original Box!
ACCUPHASE DAC-50 Digital input board - Original Box!
ACCUPHASE DAC-50 Digital input board - Original Box!
ACCUPHASE DAC-50 Digital input board - Original Box!
ACCUPHASE DAC-50 Digital input board - Original Box!
ACCUPHASE DAC-50 Digital input board - Original Box!
Postat Azi la 06:31

ACCUPHASE DAC-50 Digital input board - Original Box!

679 €

Prețul e negociabil

PromoveazăReactualizează

Persoana fizica

Stare: Utilizat

Tip: Amplicatoare

Descriere

In stare foarte buna, cu cutia originala! Am la vanzare si modulul AD-50 phono (vedeti celelalte anunturi ale mele)
www.accuphase.com/technical_information/dac-50_technical_information.pdf

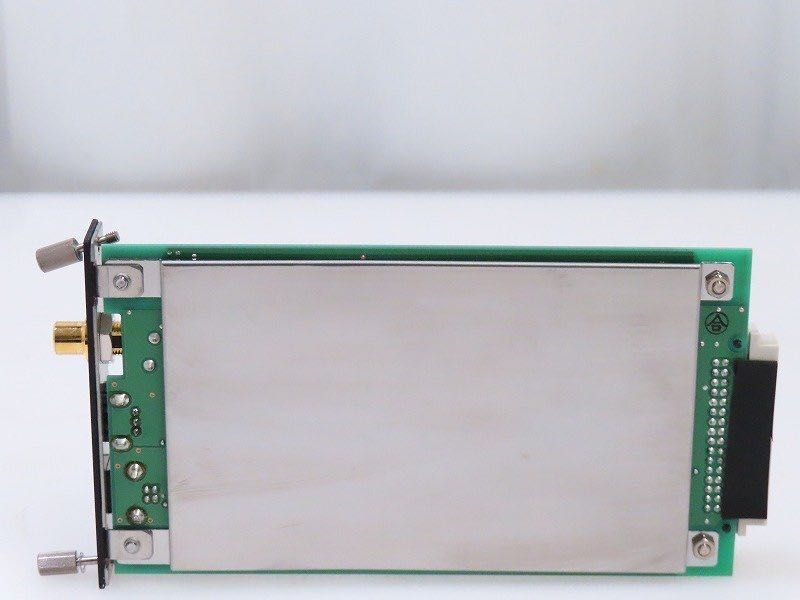

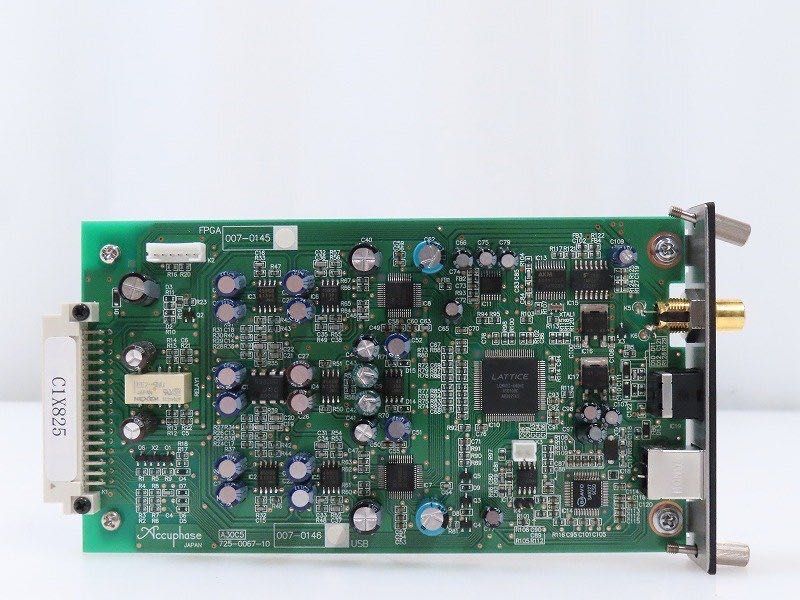

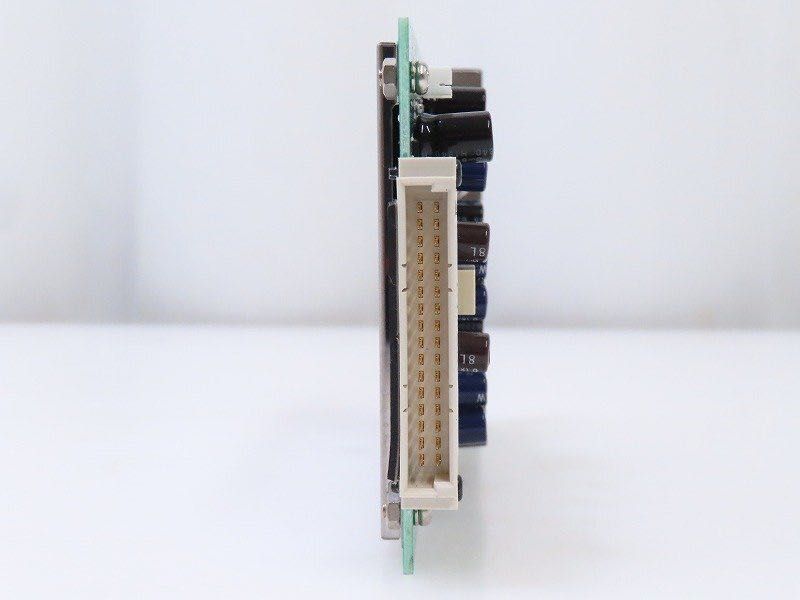

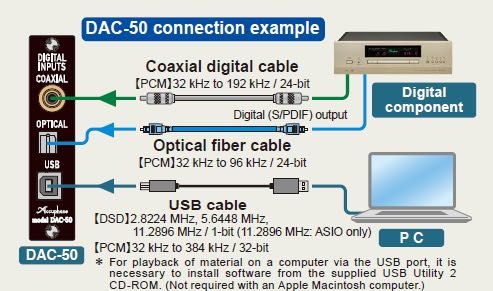

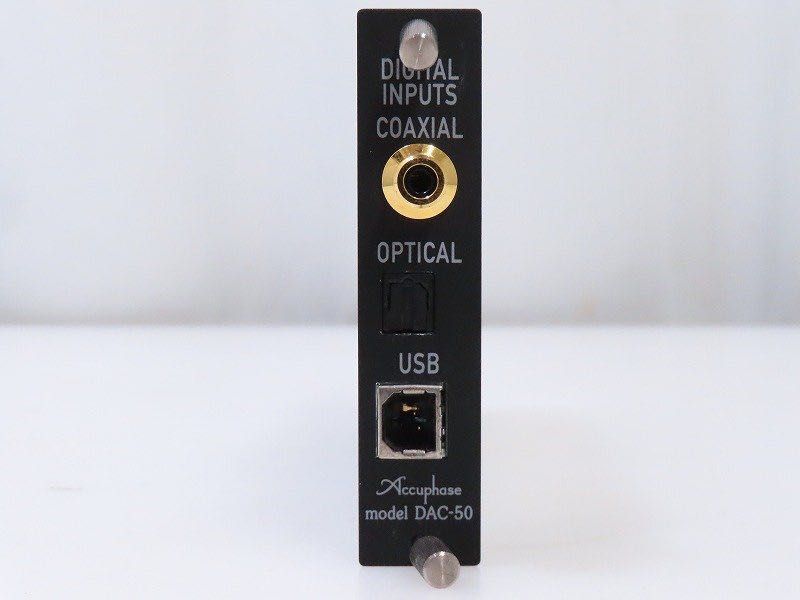

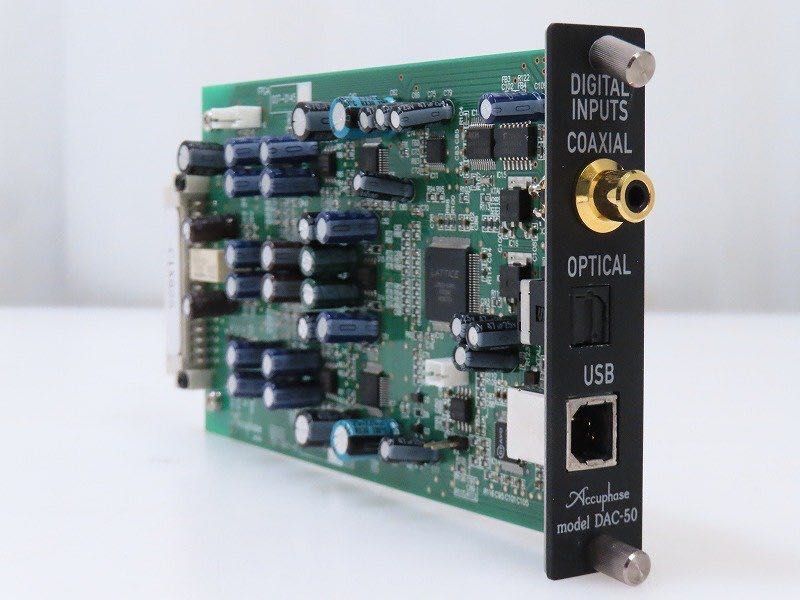

The DAC-50 is an optional digital input board that supports a broad range of digital sound sources and is equipped with a high-precision MDS type D/A converter for optimal sound quality. The converter uses AK4490EQ chips from Asahi Kasei Microdevices in a double parallel configuration per channel. Installing the board in a slot on the rear panel of a supported Accuphase component provides direct input capability for signals from digital components for high-grade playback. Three types of inputs are provided: USB (Type B), OPTICAL (for optical fiber cable), and COAXIAL (for coaxial cable). The USB input handles signals up to 11.2 MHz / 1-bit 【DSD】 and 384 kHz / 32-bit【 PCM】, the coaxial input supports up to 192 kHz / 24-bit and the optical input up to 96 kHz / 24-bit.

Function
An automatic change of the coax input / optical fiber /USB input
Automatic recognition of number of sampling frequency /bit /MHz de-emphasis
Guaranteed specifications
USB   :USB 2.0 High Speed (480Mbps) compliant
     :Sampling frequency DSD/2.8224MHz,5.6448MHz,11.2896MHz(1bit)
*11.2896MHz(ASIO only)
     :PCM/ 32kHz~384kHz,32bit
OPTICAL:JEITA CP-1212 compliant
     :Sampling frequency 32kHz~96kHz, 24bit
COAXIAL:IEC 60958/AES-3 compliant
     :Sampling frequency 32kHz~192kHz, 24bit

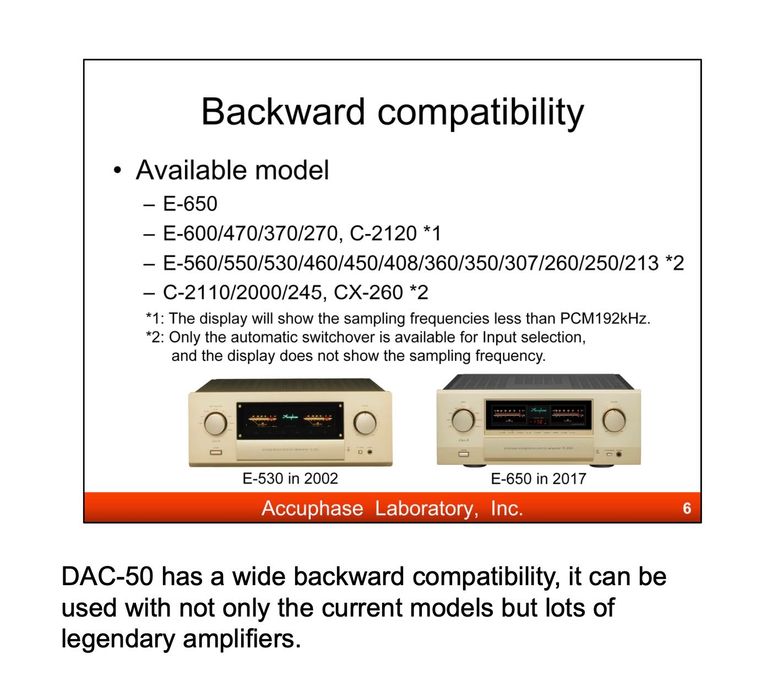

About sampling frequency display
when DAC-50 is installed in C-2120, E-600, E-470, E-370, or E-270

Sampling frequencies up to 192 kHz are shown as is.
Signals with the following sampling frequencies are handled without problem,
but the indication is always "192.0 kHz":
【DSD】 2.8224 MHz, 5.6448 MHz, 11.2896 MHz
【PCM】 352.8 kHz – 384 kHz
ID: 297463497
