> PRETUL AFISAT ESTE FIX, NU RASPUND ALTOR OFERTE DE PRET!
> NU ACCEPT SCHIMBURI!
> NU TRIMIT PRIN CURIER, DOAR PREDARE PERSONALA!

Produs in stare CA NOUA (produs doar testat, vine insotit de adaptorul pt. a putea fi montat sub placuta stabilizatorului (acelasi sistem ca si al RavenEye)) cu GARANTIE in baza facturii de achizitie.

> PUTETI VEDEA SI CELELALTE ANUNTURI ALE MELE APASAND PE "Mai multe anunțuri ale acestui vânzător".
> MULTUMESC!

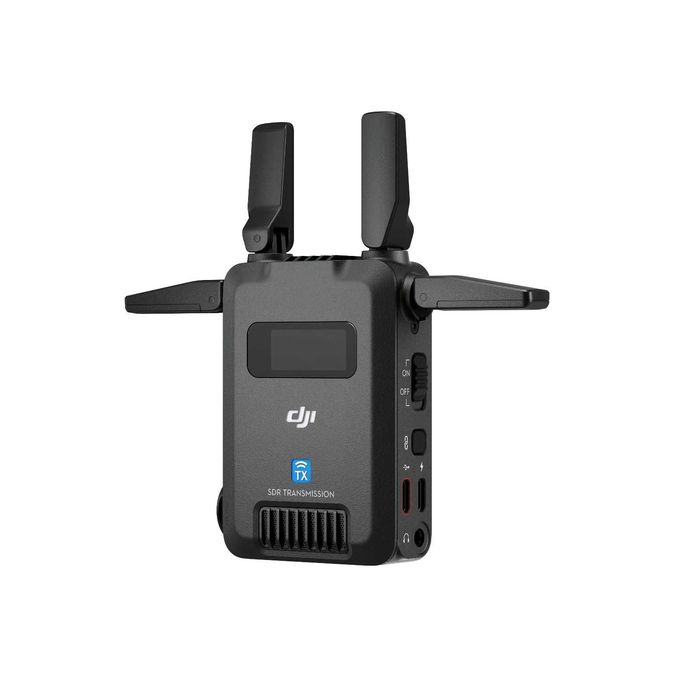

DJI SDR Transmission Transmitter TX Specs

Transmitter

Weight
Approx. 145 g (including antennas)

Dimensions
86.5×64×32 mm (L×W×H, excluding antennas)

Ports
SDI Input Port
HDMI Input Port
3.5mm Stereo Jack
USB-C Firmware Update Port
USB-C Power and Gimbal Communication Port

Operating Frequency
SDR Operating Frequency
Non-DFS Frequency Band:
2.4000-2.4835 GHz
5.725-5.850 GHz
DFS Frequency Band:
5.470-5.725 GHz

5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.

Wi-Fi Operating Frequency
2.4000-2.4835 GHz
5.150-5.250 GHz

Transmitter Power (EIRP)
SDR:
2.4000-2.4835 GHz:
30 dBm (FCC)
20 dBm (SRRC/CE/MIC)

5.470-5.725 GHz:
30 dBm (FCC)
23 dBm (CE/MIC)

5.725-5.850 GHz:
30 dBm (FCC)
14 dBm (CE)
＜30 dBm (SRRC)

Wi-Fi:
2.4000-2.4835 GHz:
26 dBm (FCC)
20 dBm (SRRC/CE/MIC)

5.150-5.250 GHz:
26 dBm (FCC)
23 dBm (SRRC/CE/MIC)

Wi-Fi Protocol
802.11b/a/g/n/ac/ax
Supports 2×2 MIMO Wi-Fi

Max Bandwidth
SDR:
20 MHz

Wi-Fi:
20 MHz

Max Bitrate
SDR:
20 Mbps*

Wi-Fi:
8 Mbps

* Measured in Control mode, with Broadcast mode turned off.

Power Consumption
8.2 W

Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.

Power Supply
USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
USB-C Power Supply Type 2: 6.8-17.2 V DC
NP-F Battery Power Supply Voltage: 6.8-8.4 V

Input Video Format
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
720p: 50/59.94/60fps

Input Audio Format
SDI embedded, HDMI embedded

Video Transmission System
SDR + Wi-Fi

Video Transmission Latency
SDR:
80 ms* (including camera and screen display latency)
35 ms* (excluding camera and screen display latency)
Wi-Fi:
110 ms**

* Measured when shooting 1080p/60fps video with Broadcast mode turned off.
** Measured when shooting 1080p/60fps video.

Video Coding Format
H.264

Max Transmission Distance
SDR:
3 km (FCC)*
2 km (CE/SRRC/MIC)*
Wi-Fi:
200 m

* Measured in Control mode, with Broadcast mode turned off.

Operating Temperature
-10° to 40° C (14° to 104° F)
