> PRETUL AFISAT ESTE FIX, NU RASPUND ALTOR OFERTE DE PRET!
> NU ACCEPT SCHIMBURI!
> NU TRIMIT PRIN CURIER, DOAR PREDARE PERSONALA!

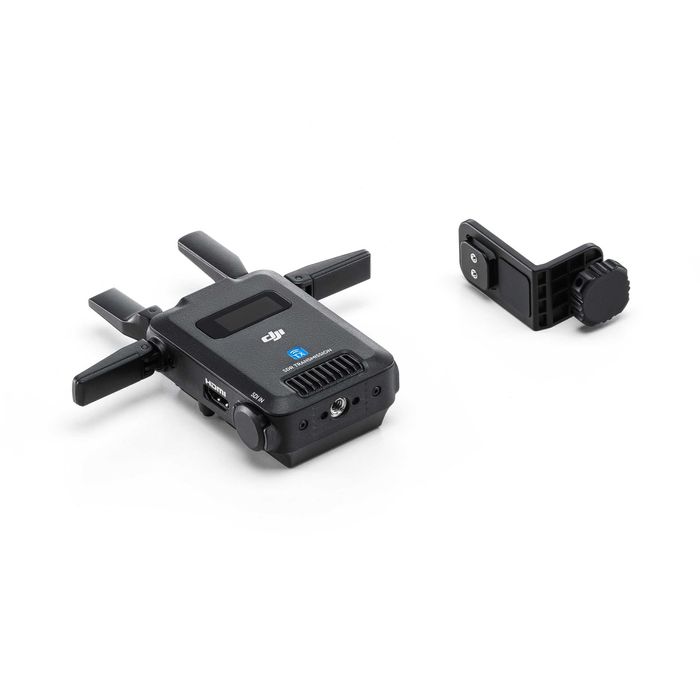

Produs in stare CA NOUA (produs doar testat, vine insotit de adaptorul pt. a putea fi montat sub placuta stabilizatorului (acelasi sistem ca si al RavenEye)) cu GARANTIE in baza facturii de achizitie.

PRET FIX!

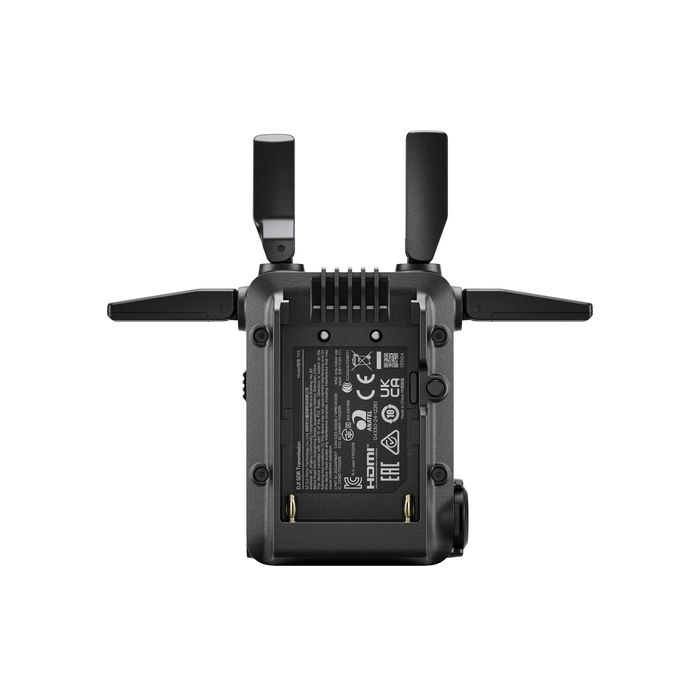

DJI SDR Transmission Transmitter TX Specs

Transmitter

Weight
Approx. 145 g (including antennas)

Dimensions
86.5×64×32 mm (L×W×H, excluding antennas)

Ports
SDI Input Port
HDMI Input Port
3.5mm Stereo Jack
USB-C Firmware Update Port
USB-C Power and Gimbal Communication Port

Operating Frequency
SDR Operating Frequency
Non-DFS Frequency Band:
2.4000-2.4835 GHz
5.725-5.850 GHz
DFS Frequency Band:
5.470-5.725 GHz

5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.

Wi-Fi Operating Frequency
2.4000-2.4835 GHz
5.150-5.250 GHz

Transmitter Power (EIRP)
SDR:
2.4000-2.4835 GHz:
30 dBm (FCC)
20 dBm (SRRC/CE/MIC)

5.470-5.725 GHz:
30 dBm (FCC)
23 dBm (CE/MIC)

5.725-5.850 GHz:
30 dBm (FCC)
14 dBm (CE)
＜30 dBm (SRRC)

Wi-Fi:
2.4000-2.4835 GHz:
26 dBm (FCC)
20 dBm (SRRC/CE/MIC)

5.150-5.250 GHz:
26 dBm (FCC)
23 dBm (SRRC/CE/MIC)

Wi-Fi Protocol
802.11b/a/g/n/ac/ax
Supports 2×2 MIMO Wi-Fi

Max Bandwidth
SDR:
20 MHz

Wi-Fi:
20 MHz

Max Bitrate
SDR:
20 Mbps*

Wi-Fi:
8 Mbps

* Measured in Control mode, with Broadcast mode turned off.

Power Consumption
8.2 W

Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.

Power Supply
USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
USB-C Power Supply Type 2: 6.8-17.2 V DC
NP-F Battery Power Supply Voltage: 6.8-8.4 V

Input Video Format
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
720p: 50/59.94/60fps

Input Audio Format
SDI embedded, HDMI embedded

Video Transmission System
SDR + Wi-Fi

Video Transmission Latency
SDR:
80 ms* (including camera and screen display latency)
35 ms* (excluding camera and screen display latency)
Wi-Fi:
110 ms**

* Measured when shooting 1080p/60fps video with Broadcast mode turned off.
** Measured when shooting 1080p/60fps video.

Video Coding Format
H.264

Max Transmission Distance
SDR:
3 km (FCC)*
2 km (CE/SRRC/MIC)*
Wi-Fi:
200 m

* Measured in Control mode, with Broadcast mode turned off.

Operating Temperature
-10° to 40° C (14° to 104° F)
